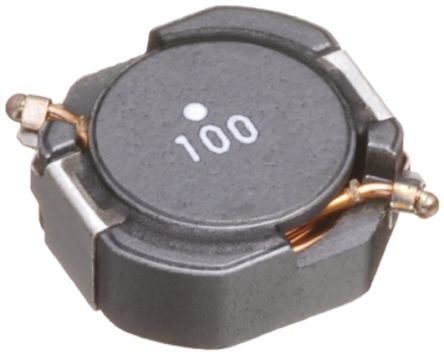

TDK CLF6045T-150M 表面贴装功率电感器, CLF系列, 15 µH, ± 20%, 屏蔽, 0.055 ohm, 2 A
SMD 功率器 - CLF6045 系列
CLF6045 系列电感器具有高磁屏蔽结构,实现高分辨率,提供 EMC 保护
应用包括 LCD-TV、PDP-TV、LCD 显示屏、BD 记录器、DVD 录像机和 STB
### 非标准 SMT 电感器(扼流圈)
得捷:
FIXED IND 15UH 2A 66 MOHM SMD
欧时:
TDK CLF 系列 屏蔽 铁氧体芯材 15 μH 绕线贴片电感器 CLF6045T-150M, ±20%容差, 2A Idc
贸泽:
Fixed Inductors 15uH
e络盟:
TDK CLF6045T-150M 表面贴装功率电感器, CLF系列, 15 µH, ± 20%, 屏蔽, 0.055 ohm, 2 A
艾睿:
This power CLF6045T-150M surface mount inductor from TDK is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 105 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 2Typ A with a maximum resistance of 66m Ohm. It has a tolerance of 20%. This product is 6.4 mm long, 4.8 mm tall and 6.1 mm deep. Its test frequency is 100K Hz. It has an inductance of 15u H.
Verical:
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 2A 0.066Ohm DCR T/R
Newark:
# TDK CLF6045T-150M Surface Mount Power Inductor, CLF Series, 15 H, 20%, Shielded, 0.055 ohm, 2 A
额定电流 2 A
容差 ±20 %
电感 15 µH
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤66 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.055 Ω
安装方式 Surface Mount

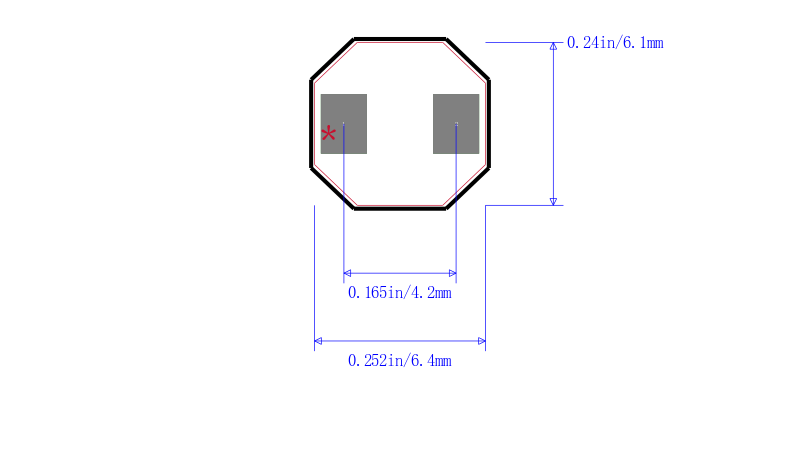

封装 6.2mm x 5.9mm x 4.5mm
长度 6.2 mm
宽度 5.9 mm
高度 4.5 mm
封装 6.2mm x 5.9mm x 4.5mm
工作温度 -40℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CLF6045T-150M TDK 东电化 | 当前型号 | 当前型号 |
ELL-6UH150M 松下 | 功能相似 | CLF6045T-150M和ELL-6UH150M的区别 |
B82462G4153M 爱普科斯 | 功能相似 | CLF6045T-150M和B82462G4153M的区别 |
CLF6045T-150M-D 东电化 | 功能相似 | CLF6045T-150M和CLF6045T-150M-D的区别 |
