16位缓冲器/线路驱动器 16-Bit Buffers/Line Drivers
缓冲器,反向 4 元件 4 位每元件 三态 Output 48-SSOP
得捷:
IC BUFFER INVERT 5.5V 48SSOP
立创商城:
CY74FCT162240CTPVC
德州仪器TI:
16-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
贸泽:
缓冲器和线路驱动器 16B Buffers/Drivers
艾睿:
By driving the input to the transmission line this CY74FCT162240CTPVC buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. It has 16 channels per chip. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
Buffer/Line Driver 16-CH Inverting 3-ST CMOS 48-Pin SSOP Tube
Chip1Stop:
Buffer/Line Driver 16-CH Inverting 3-ST CMOS 48-Pin SSOP Tube
Verical:
Buffer/Line Driver 16-CH Inverting 3-ST CMOS 48-Pin SSOP Tube
AMEYA360:
IC INVERTER QUAD 4-INPUT 48SSOP
DeviceMart:
IC INVERTER QUAD 4-INPUT 48SSOP
电源电压DC 5.50V max
输出接口数 16
电路数 4
通道数 16
位数 16
电压波节 5.00 V
耗散功率 1 W
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 48
封装 SSOP-48

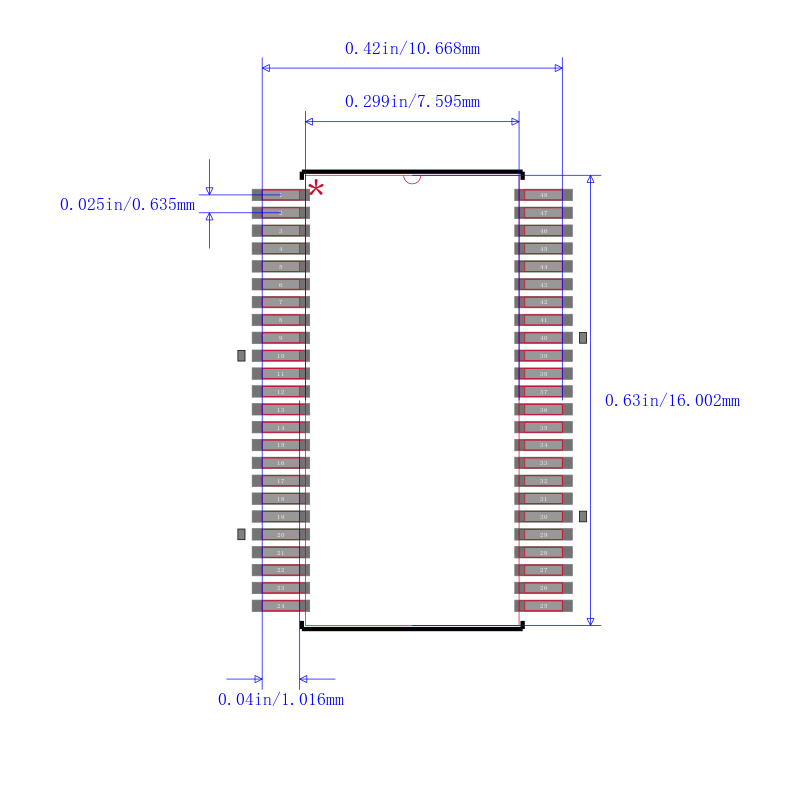

长度 15.88 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CY74FCT162240CTPVC TI 德州仪器 | 当前型号 | 当前型号 |
74FCT162240CTPVCT 德州仪器 | 完全替代 | CY74FCT162240CTPVC和74FCT162240CTPVCT的区别 |
74FCT162240CTPVCG4 德州仪器 | 完全替代 | CY74FCT162240CTPVC和74FCT162240CTPVCG4的区别 |
FCT162240CTPVCTG4 德州仪器 | 类似代替 | CY74FCT162240CTPVC和FCT162240CTPVCTG4的区别 |
