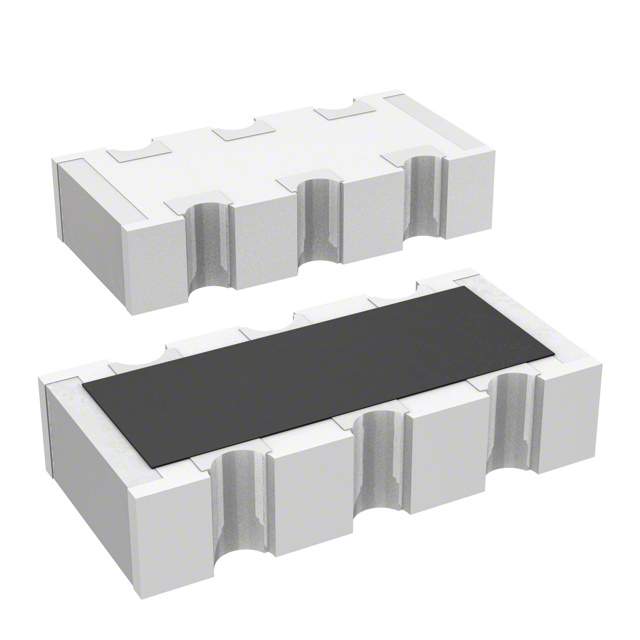

CAY10-430J4LF

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.125W1/8W, 43Ω, 25V, 5% +/-Tol, 250ppm/Cel, Surface Mount, 0804, CHIP, ROHS COMPLIANT

43 欧姆 ±5% 62.5mW 每元件功率 隔离 4 器网络，阵列 ±250ppm/°C 0804，凸面，长边端子

得捷:
RES ARRAY 4 RES 43 OHM 0804

艾睿:
This CAY10-430J4LF resistor array by Bourns packs multiple resistors into one IC chip. Its temperature coefficient is ±250 ppm/°C. This product&s;s 4 resistors have a value of 43 Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes thick film technology. It has a tolerance of 5%. This product&s;s terminal pitch is 0.5 mm. This product is 2 mm long, 0.35 mm tall and 1 mm deep. This part has an operating temperature of -55 to 125 °C. The CAY10-430J4LF part has a convex termination style.

安富利:
Res Thick Film Array 43 Ohm 5% 1/8W ±250ppm/°C ISOL Molded 8-Pin 0804 Convex SMD Paper T/R

Chip1Stop:
Res Thick Film Array 43 Ohm 5% 0.25W1/4W ±250ppm/℃ ISOL Molded 8-Pin 08044 X 0402 Convex SMD T/R

Electro Sonic:
Res Thick Film Array 43 Ohm 5% 0.25W1/4W ±250ppm/°C ISOL Molded 8-Pin 08044 X 0402 Convex SMD T/R
