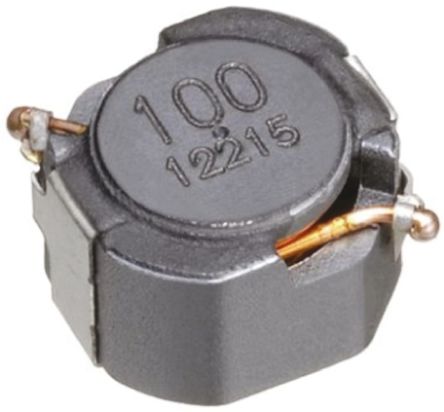

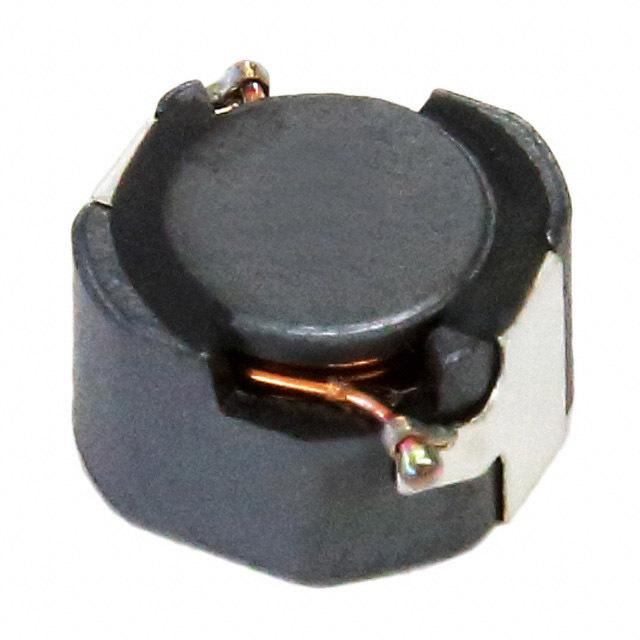

CLF7045T-221M

SMD 功率电感器 - CLF7045T 系列CLF7045 系列为磁性屏蔽线绕电感器，用于电源电路 CLF 系列提供极好的 EMC 处理性能 广泛的 E-6 系列 1 到 470μH 范围可用于多种用途 ### TDK 非标准 SMT 电感器（扼流圈）

SMD 功率器 - CLF7045T 系列

CLF7045 系列为磁性屏蔽线绕电感器，用于电源电路

CLF 系列提供极好的 EMC 处理性能

广泛的 E-6 系列 1 到 470μH 范围可用于多种用途

得捷:
FIXED IND 220UH 520MA 792MOHM SM

欧时:
TDK CLF 系列 屏蔽 铁氧体芯材 220 μH 绕线贴片电感器 CLF7045T-221M, ±20%容差, 620mA Idc

艾睿:
This power CLF7045T-221M surface mount inductor from TDK is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 520mA typ with a maximum resistance of 792m Ohm. This product is 7.4 mm long, 4.8 mm tall and 7.1 mm deep. Its test frequency is 100K Hz. This device is made with wirewound technology. It has an inductance of 220u H.

安富利:
Ind Power Shielded Wirewound 220uH 20% 100KHz Ferrite 520mA Blister Plastic T/R

Verical:
Inductor Power Shielded Wirewound 220uH 20% 100KHz Ferrite 0.52A 0.792Ohm DCR T/R
