CLF10040T-331M

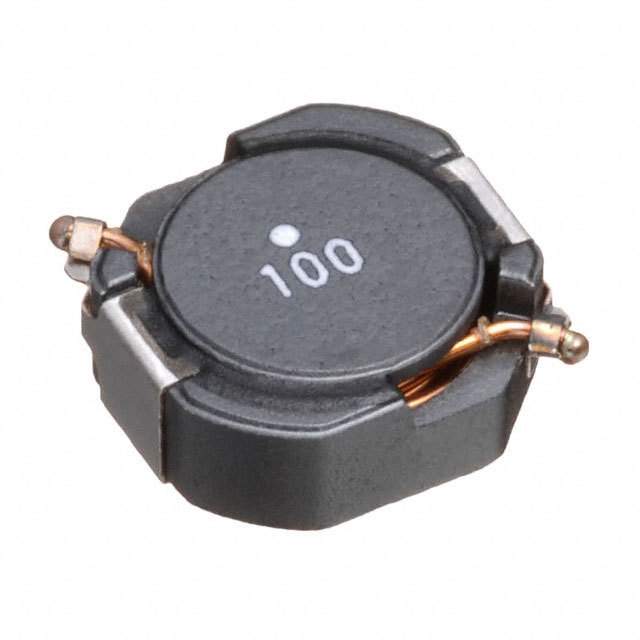

CLF10040T-331M图片1
CLF10040T-331M图片2
CLF10040T-331M图片3
CLF10040T-331M图片4
CLF10040T-331M图片5
CLF10040T-331M图片6
CLF10040T-331M图片7
CLF10040T-331M图片8
CLF10040T-331M图片9
CLF10040T-331M概述

固定电感器

固定器


得捷:
FIXED IND 330UH 530MA 1.032 OHM


艾睿:
This power CLF10040T-331M surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 530mA typ with a maximum resistance of 1.032 Ohm. This product is 10.3 mm long, 4.1 mm tall and 10 mm deep. It has an inductance of 330u H. This device is made with wirewound technology. It has a tolerance of 20%. Its test frequency is 100K Hz.


安富利:
Ind Power Shielded Wirewound 330uH 20% 100KHz Ferrite 530mA Blister Plastic T/R


Verical:
Inductor Power Shielded Wirewound 330uH 20% 100KHz Ferrite 0.53A 1.032Ohm DCR T/R


CLF10040T-331M中文资料参数规格
技术参数

额定电流 530 mA

容差 ±20 %

电感 330 µH

电感公差 ±20 %

测试频率 100 kHz

电阻DC) 1.032 Ω

工作温度Max 105 ℃

工作温度Min -40 ℃

电阻DC Max 0.86 Ω

封装参数

安装方式 Surface Mount

封装 10 mm x 9.7 mm

外形尺寸

宽度 9.7 mm

高度 4.1 mm

封装 10 mm x 9.7 mm

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

CLF10040T-331M引脚图与封装图

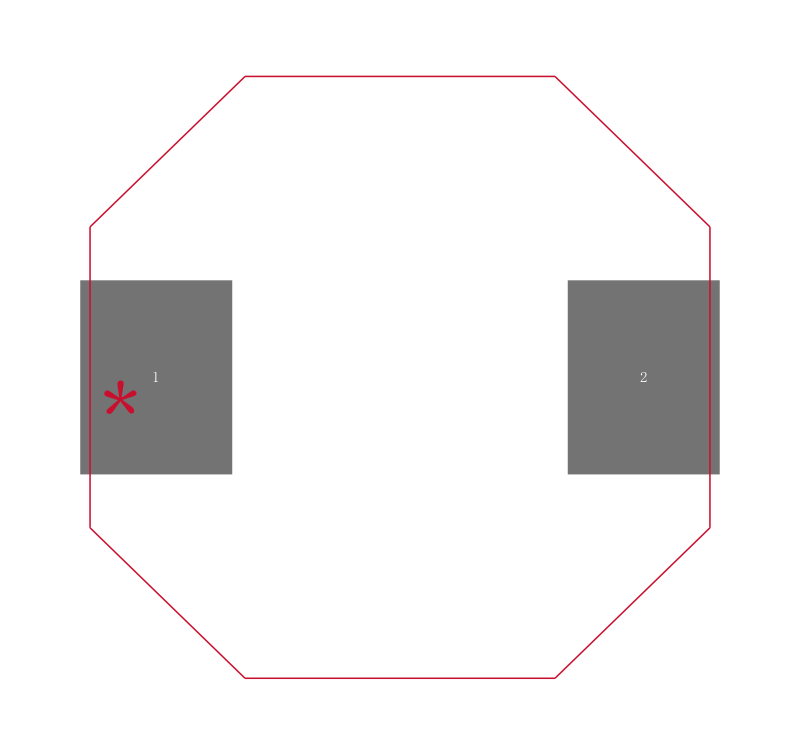

CLF10040T-331M引脚图

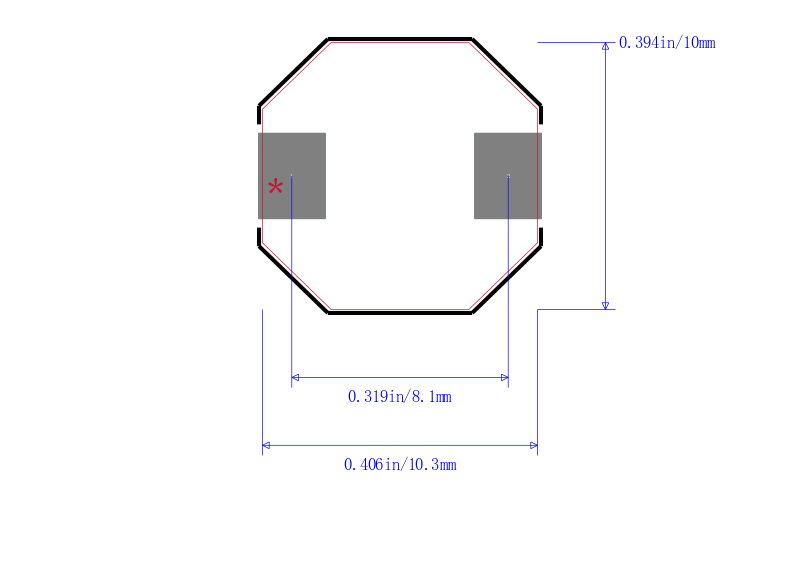

CLF10040T-331M封装图
CLF10040T-331M封装焊盘图
