CRL0805-FW-R820ELF

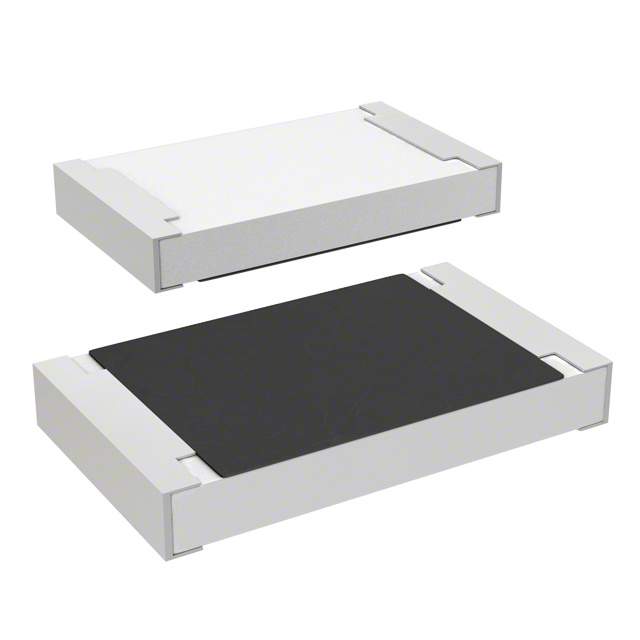

CRL0805-FW-R820ELF图片1
CRL0805-FW-R820ELF图片2
CRL0805-FW-R820ELF图片3
CRL0805-FW-R820ELF图片4
CRL0805-FW-R820ELF概述

SMD片式电阻, 0805 [2012公制], 0.82 ohm, CRL Series, 厚膜, 125 mW

820 mOhms ±1% 0.125W,1/8W 芯片 0805(2012 公制) - 厚膜


立创商城:
820mΩ ±1% 125mW


得捷:
RES SMD 0.82 OHM 1% 1/8W 0805


e络盟:
SMD片式电阻, 0805 [2012公制], 0.82 ohm, CRL Series, 厚膜, 125 mW


艾睿:
Use this CRL0805-FW-R820ELF fixed single surface-mount resistor from Bourns to obtain a visually clean layout. This product has a resistance value of 820m Ohm. This part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±200 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep. It has a tolerance of 1%.


安富利:
Res Thick Film 0805 0.82 Ohm 1% 1/8W ±200ppm/°C Molded SMD SMD Paper Tape on Plastic Reel


Verical:
Res Thick Film 0805 0.82 Ohm 1% 0.125W1/8W ±200ppm/C Pad SMD T/R


Electro Sonic:
Res Thick Film 0805 0.82 Ohm 1% 0.125W1/8W ±200ppm/°C Pad SMD T/R


CRL0805-FW-R820ELF中文资料参数规格
技术参数

额定功率 0.125 W

产品系列 CRL

电阻 820 mΩ

阻值偏差 ±1 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.25 mm

高度 0.5 mm

封装公制 2012

封装 0805

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CRL0805-FW-R820ELF
型号: CRL0805-FW-R820ELF
制造商: Bourns J.W. Miller 伯恩斯
描述:SMD片式电阻, 0805 [2012公制], 0.82 ohm, CRL Series, 厚膜, 125 mW
替代型号CRL0805-FW-R820ELF
型号/品牌 代替类型 替代型号对比

CRL0805-FW-R820ELF

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

CRL0805-FW-R820E

伯恩斯

类似代替

CRL0805-FW-R820ELF和CRL0805-FW-R820E的区别
