CRCW12102K21FKEA

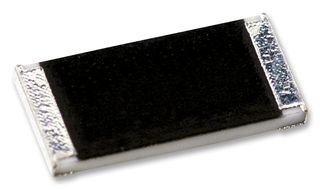

CRCW12102K21FKEA图片1
CRCW12102K21FKEA图片2
CRCW12102K21FKEA图片3
CRCW12102K21FKEA图片4
CRCW12102K21FKEA概述

VISHAY  CRCW12102K21FKEA  片式电阻器, 表面贴装, 厚膜, AEC-Q200 CRCW系列, 2.21 kohm, 200 V, 1210 [3225公制], 500 mW, ± 1%

The Vishay D/CRCW e3 series are standard thick film chip resistors. The resistance range includes E96 and E24 decade values from 1ohm to 10Mohm. CRCW e3 series resistors have a pure tin solder contacts on the Ni barrier layer that provides compatibility with reflow soldering process.

.
Automotive grade AEC-Q200 qualified
.
EIA 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512 standard case sizes available
.
Stability ΔR/R = 1% for 1000h at 70°C
.
Metal glaze on high quality ceramic
.
Zero ohm jumper are available for all sizes
.
2mm pitch packaging option for 0603 size
.
Available in ±1% and ±5% tolerance
.
±100ppm/K and ±200ppm/K TCR values available
.
Operating temperature range -55°C to +155°C
.
Maximum power rating is 1W
CRCW12102K21FKEA中文资料参数规格
技术参数

容差 ±1 %

额定功率 500 mW

电阻 2.21 kΩ

阻值偏差 ±1 %

额定电压 200 V

封装参数

安装方式 Surface Mount

封装公制 3225

封装 1210

外形尺寸

长度 3.2 mm

宽度 2.5 mm

封装公制 3225

封装 1210

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

包装方式 Cut Tape CT

制造应用 Industrial, 便携式器材, Automotive, 工业, 消费电子产品, 车用, Consumer Electronics, Portable Devices, 电源管理, Power Management

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CRCW12102K21FKEA
型号: CRCW12102K21FKEA
描述:VISHAY  CRCW12102K21FKEA  片式电阻器, 表面贴装, 厚膜, AEC-Q200 CRCW系列, 2.21 kohm, 200 V, 1210 [3225公制], 500 mW, ± 1%
替代型号CRCW12102K21FKEA
型号/品牌 代替类型 替代型号对比

CRCW12102K21FKEA

Vishay Semiconductor 威世

当前型号

当前型号

ERJP14F2211U

松下

类似代替

CRCW12102K21FKEA和ERJP14F2211U的区别
