Res Thick Film Array 15Ω 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Concave SMD T/R

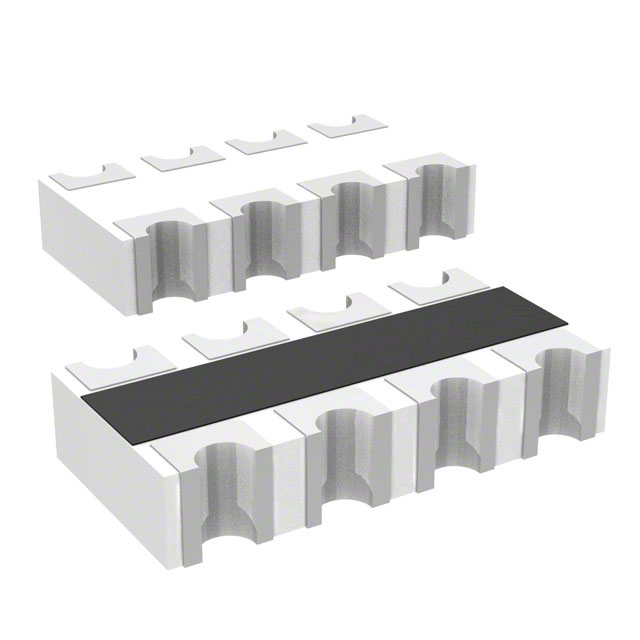

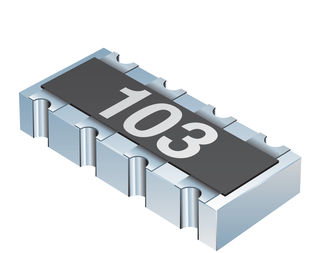

This resistor array by Bourns packs multiple resistors into one IC chip. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product"s 4 resistors have a value of 15 Ohm. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The CAT16-150J4LF part has a concave termination style. This product is 3.2 mm long, 0.5 mm tall and 1.55 mm deep. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. This product"s terminal pitch is 0.8 mm. This device is made with thick film technology.
容差 ±5 %
额定功率 0.25 W
电路数 4
电阻 15 Ω
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 8
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.55 mm
高度 0.5 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CAT16-150J4LF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
742C083150JPTR 西迪斯 | 类似代替 | CAT16-150J4LF和742C083150JPTR的区别 |
