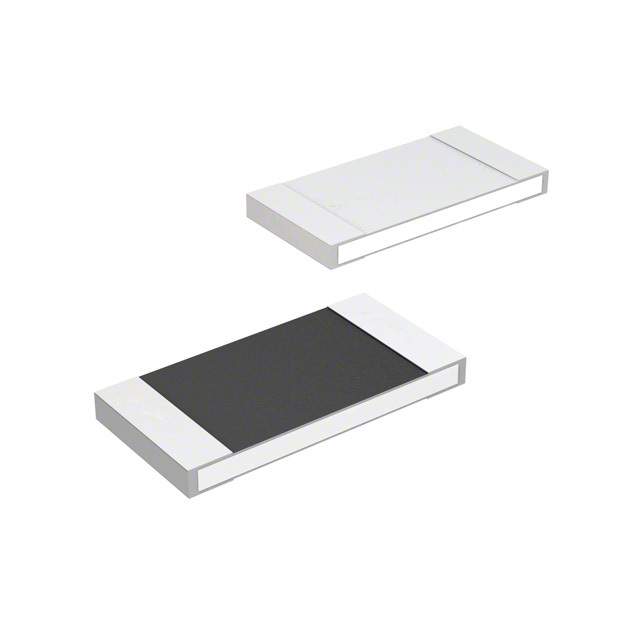

BOURNS CRM2512-JW-101ELF 片式电阻器, 表面贴装, 厚膜, CRM系列, 100 ohm, 300 V, 2512 [6432公制], 2 W, ± 5%
The fixed single surface-mount resistor from Bourns makes it easy to add resistors to your circuit board. This part has a power rating of 2 W. This product has a resistance value of 100 Ohm. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with thick film technology. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C. This product is 6.3 mm long, 0.6 mm tall and 3.1 mm deep.
额定电压DC 300 V
容差 ±5 %
额定功率 2 W
产品系列 CRM
电阻 100 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 300 V
安装方式 Surface Mount

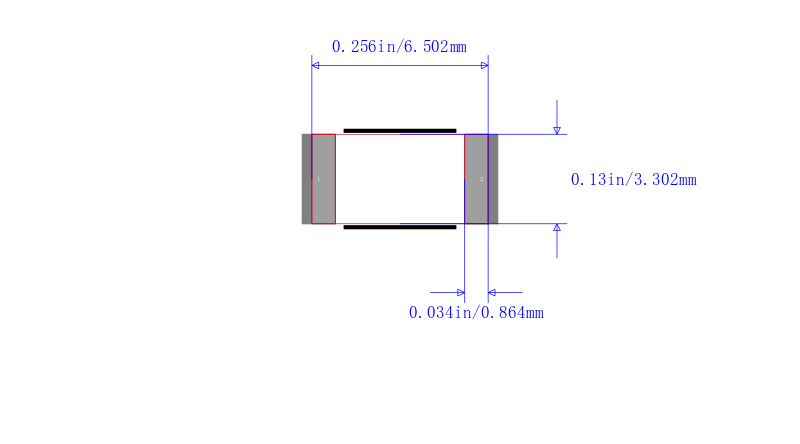

封装公制 6432
封装 2512
长度 6.4 mm
宽度 3.1 mm
高度 0.6 mm
封装公制 6432
封装 2512
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210030
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CRM2512-JW-101ELF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CRM2512-FX-1000ELF 伯恩斯 | 类似代替 | CRM2512-JW-101ELF和CRM2512-FX-1000ELF的区别 |
CRGH2512J100R 泰科 | 功能相似 | CRM2512-JW-101ELF和CRGH2512J100R的区别 |
PWC2512-100RJI TT Electronics/Welwyn | 功能相似 | CRM2512-JW-101ELF和PWC2512-100RJI的区别 |
