CD74ACT74QM96Q1概述

双上升沿触发的D型触发器具有清零和预设 DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH CLEAR AND PRESET

description/ordering information

The CD74ACT74 dual positive-edge-triggered device is a D-type flip-flop.

A low level at the preset PRE or clear CLR inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive high, data at the data D input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not related directly to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.

• Qualified for Automotive Applications

• Inputs Are TTL-Voltage Compatible

• Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption

• Balanced Propagation Delays

• ±24-mA Output Drive Current

   − Fanout to 15 F Devices

• SCR-Latchup-Resistant CMOS Process and Circuit Design

CD74ACT74QM96Q1中文资料参数规格
技术参数

电源电压DC 4.50V ~ 5.50V

输出接口数 4

时钟频率 85 MHz

位数 2

传送延迟时间 9.50 ns

电压波节 5.00 V

输入电容 10 pF

输出电流驱动 -1.00 mA

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 14

封装 SOIC-14

外形尺寸

高度 1.5 mm

封装 SOIC-14

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CD74ACT74QM96Q1引脚图与封装图

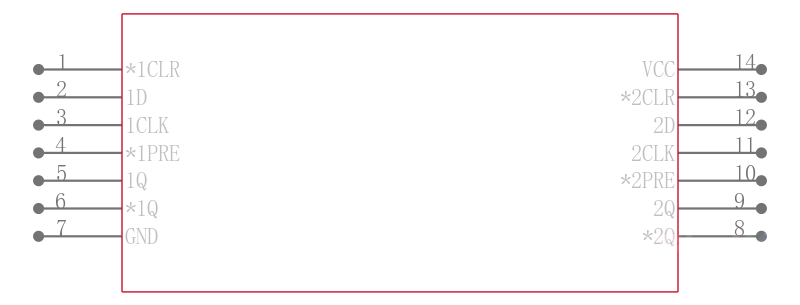

CD74ACT74QM96Q1引脚图
CD74ACT74QM96Q1封装图
CD74ACT74QM96Q1封装焊盘图
在线购买CD74ACT74QM96Q1
型号: CD74ACT74QM96Q1
制造商: TI 德州仪器
描述:双上升沿触发的D型触发器具有清零和预设 DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH CLEAR AND PRESET
