CAY10-560J4LF

BOURNS  CAY10-560J4LF  电阻阵列, 56R, 5%, 0.125W

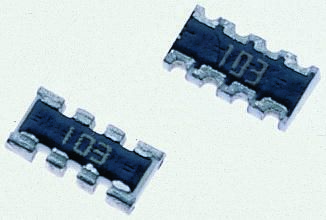

CAY10 系列凸面片式器阵列

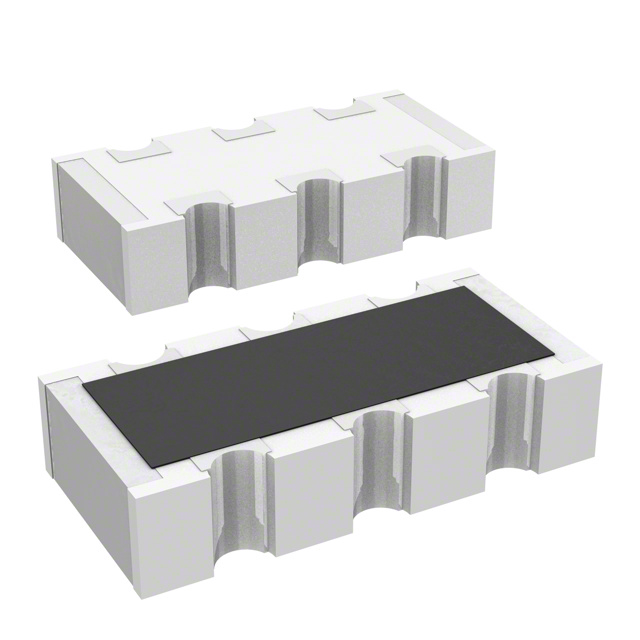

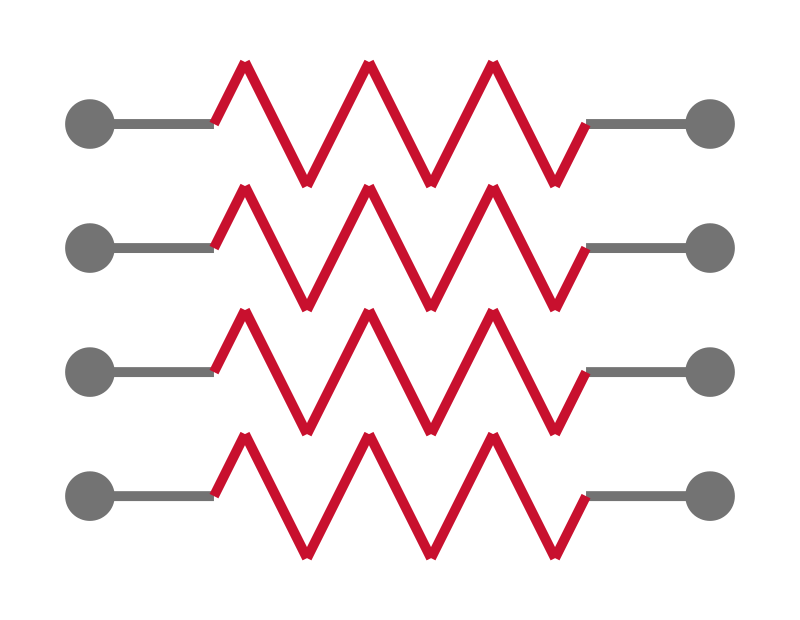

Bourns CAY10 系列片式电阻器阵列，0804 封装中有 4 个隔离式元件。

凸面接线端子

电阻容差 ±5 %

电阻范围：10Ω 至 470 kΩ

70°C 时功率 | 125mW

---|---

最大电压 | 25V

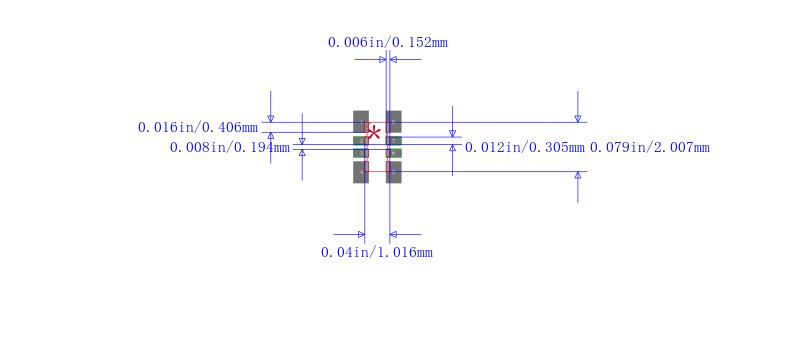

尺寸（长 x 宽 x 高） | 2.0 x 1.0 x 0.35

引线间距 | 0.5 mm

容差 | ±5%

温度系数 | ±250ppm/°C

工作温度 | -55 → +125°C

立创商城:
56Ω ±5%

得捷:
RES ARRAY 4 RES 56 OHM 0804

欧时:
Bourns CAY10 系列 56Ω 4电阻 贴片排阻 CAY10-560J4LF, ±5%容差, ISOL, 0804 2010M 封装

贸泽:
电阻器网络与阵列 56ohm 5% Convex 4resistors

e络盟:
固定阵列电阻, 56 ohm, CAY10 Series, 4 元件, 隔离, 0804 [2010公制], 8 引脚

艾睿:
Pack multiple resistors into a single chip with this CAY10-560J4LF resistor array from Bourns. Its temperature coefficient is ±250 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 56 Ohm. It has 8 terminals. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with thick film technology. The CAY10-560J4LF part has a convex termination style. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.5 mm. This product is 2 mm long, 0.35 mm tall and 1 mm deep.

Allied Electronics:
CAY10 Series 56Ohms +/-5% Isolated SMT Resistor Array, 4 Resistors 0804 package

安富利:
Res Thick Film Array 56 Ohm 5% 1/8W ±250ppm/°C ISOL Molded 8-Pin 0804 Convex SMD Paper T/R

Chip1Stop:
Res Thick Film Array 56 Ohm 5% 0.25W1/4W ±250ppm/℃ ISOL Molded 8-Pin 08044 X 0402 Convex SMD T/R

Verical:
Res Thick Film Array 56 Ohm 5% 0.25W1/4W ±250ppm/C ISOL Molded 8-Pin 08044 X 0402 Convex SMD T/R

Newark:
# BOURNS  CAY10-560J4LF  Fixed Network Resistor, Isolated, 56 ohm, 25 V, 4 Elements, Isolated, 0804 [2010 Metric], 63 mW

MASTER:
Res Thick Film Array 56 Ohm 5% 0.25W1/4W ±250ppm/°C ISOL 8-Pin 08044 X 0402 Convex SMD T/R

Electro Sonic:
Res Thick Film Array 56 Ohm 5% 0.25W1/4W ±250ppm/°C ISOL 8-Pin 08044 X 0402 Convex SMD T/R
