CMOS四三态R / S锁存器 CMOS QUAD 3-STATE R/S LATCHES
Quad NOR 3-State R/S Latches CD4043B
Quad NAND 3-State R/S Latches CD4044B
得捷:
IC QUAD NAND R/S LATCH 16-SOIC
立创商城:
CD4044BDT
贸泽:
Latches CMOS Quad NAND R/S
艾睿:
This sr-type CD4044BDT low-level latch from Texas Instruments creates a barrier of information and will open once it is enabled. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has 4 channels per chip. This non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
Chip1Stop:
Latch Transparent 3-ST 4-CH SR-Type 16-Pin SOIC T/R
Verical:
Latch Transparent 3-ST 4-CH SR-Type 16-Pin SOIC T/R
输出接口数 4
输出电流 6.80 mA
电路数 1
通道数 4
位数 4
电压波节 5.00 V, 10.0 V, 15.0 V
输入数 8
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16

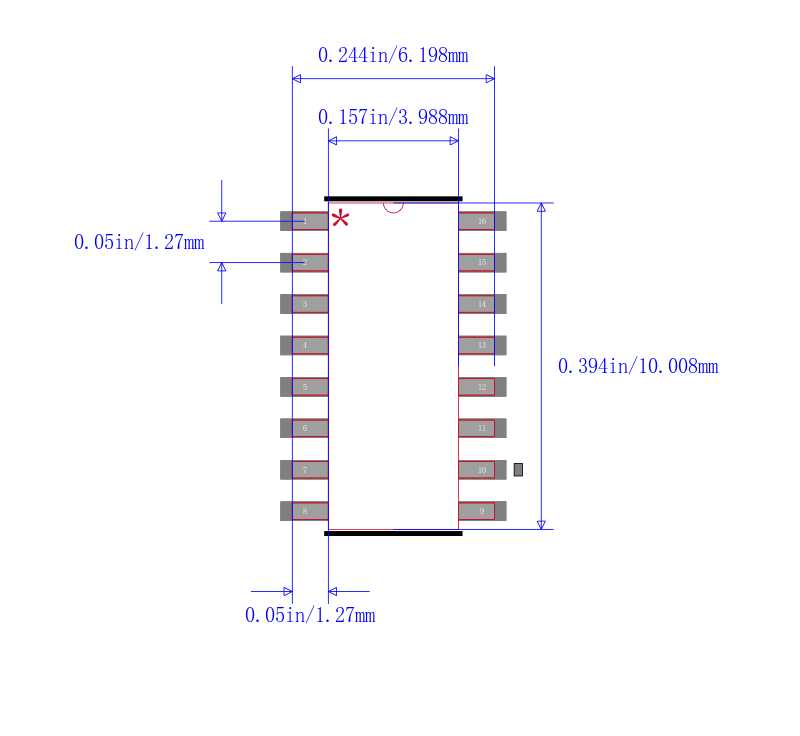

封装 SOIC-16
长度 9.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD4044BDT TI 德州仪器 | 当前型号 | 当前型号 |
CD4044BD 德州仪器 | 类似代替 | CD4044BDT和CD4044BD的区别 |
CD4044BDR 德州仪器 | 类似代替 | CD4044BDT和CD4044BDR的区别 |
