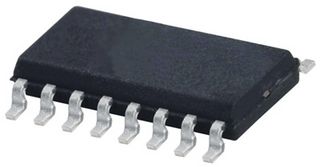

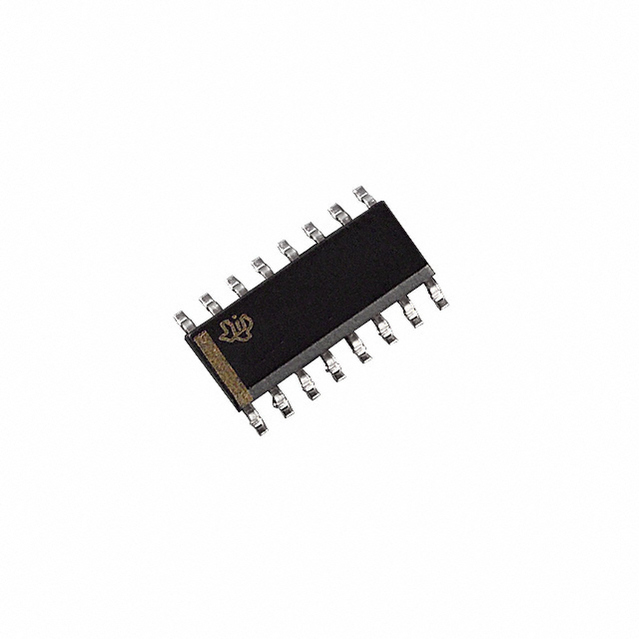

TEXAS INSTRUMENTS CD74HCT175MT 触发器, 差分, 正沿, D, 13 ns, 25 MHz, SOIC, 16 引脚
Store state information for later use by using the Texas Instruments flip flop device. It has a differential output signal. This flip flop has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has 4 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
频率 25 MHz
电源电压DC 4.50V min
输出接口数 4
输出电流 4.00 mA
电路数 4
针脚数 16
时钟频率 25 MHz
位数 4
极性 Non-Inverting, Inverting
输入电容 10 pF
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 9.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74HCT175MT TI 德州仪器 | 当前型号 | 当前型号 |
CD74HCT175MG4 德州仪器 | 完全替代 | CD74HCT175MT和CD74HCT175MG4的区别 |
5962-8970101EA 德州仪器 | 完全替代 | CD74HCT175MT和5962-8970101EA的区别 |
CD74HCT175M 德州仪器 | 类似代替 | CD74HCT175MT和CD74HCT175M的区别 |
