六路D型触发器与Clear HEX D-TYPE FLIP-FLOPS WITH CLEAR
1 元件 D 型 6 位 正边沿 16-SOIC(0.154",3.90mm 宽)
得捷:
IC FF D-TYPE SNGL 6BIT 16SOIC
立创商城:
CD74ACT174M96
德州仪器TI:
Hex D-Type Flip-Flops with Reset
贸泽:
触发器 Hex w/Reset
艾睿:
Texas Instruments&s; CD74ACT174M96 flip flop device will allow you to easily build and test a circuit based on the state information provided. It has a single-ended output signal. This flip flop has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 6 channels per chip.
安富利:
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16-Pin SOIC T/R
Chip1Stop:
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16-Pin SOIC T/R
Verical:
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16-Pin SOIC T/R
频率 80 MHz
数字逻辑电平 CMOS
电源电压DC 5.00 V, 5.50 V max
输出接口数 6
输出电流 24.0 mA
电路数 7
时钟频率 80 MHz
位数 6
极性 Non-Inverting
输入电容 10 pF
输入数 6
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 16

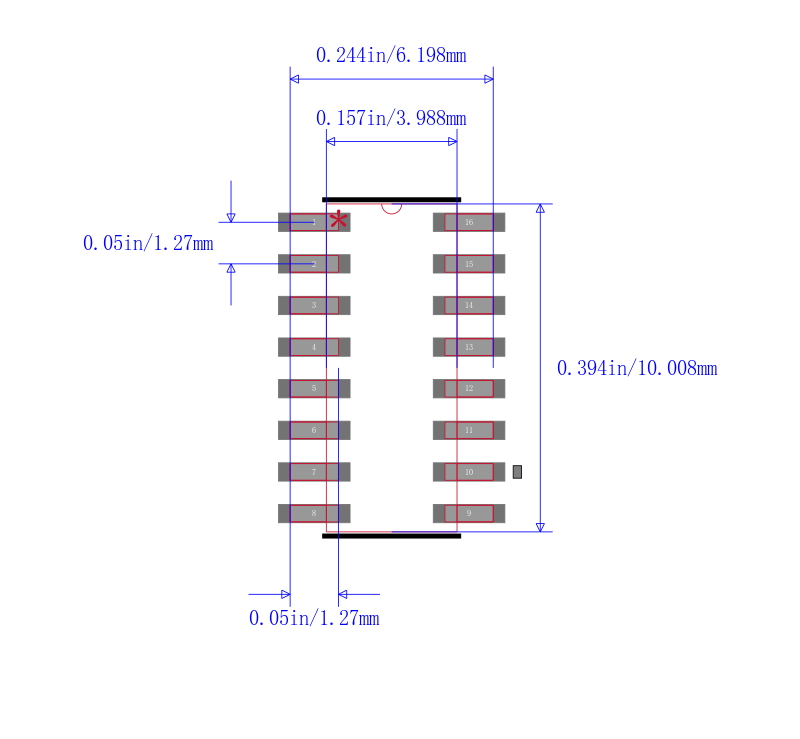

封装 SOIC-16
长度 9.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD74ACT174M96 TI 德州仪器 | 当前型号 | 当前型号 |
CD74ACT174M 德州仪器 | 类似代替 | CD74ACT174M96和CD74ACT174M的区别 |
CD74ACT174M96G4 德州仪器 | 类似代替 | CD74ACT174M96和CD74ACT174M96G4的区别 |
CD74ACT174M96E4 德州仪器 | 类似代替 | CD74ACT174M96和CD74ACT174M96E4的区别 |
