双JK触发器具有置位和复位负边沿触发 Dual J-K Flip-Flop with Set and Reset Negative-Edge Trigger
Texas Instruments brings you their latest flip flop device, a simple yet effective method for storing your circuit"s state information. It has a differential output signal. This flip flop has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This inverting/non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 2 channels per chip.
频率 60.0 MHz
输出接口数 1
输出电流 5.20 mA
电路数 2
时钟频率 60 MHz
位数 2
输入电容 10 pF
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

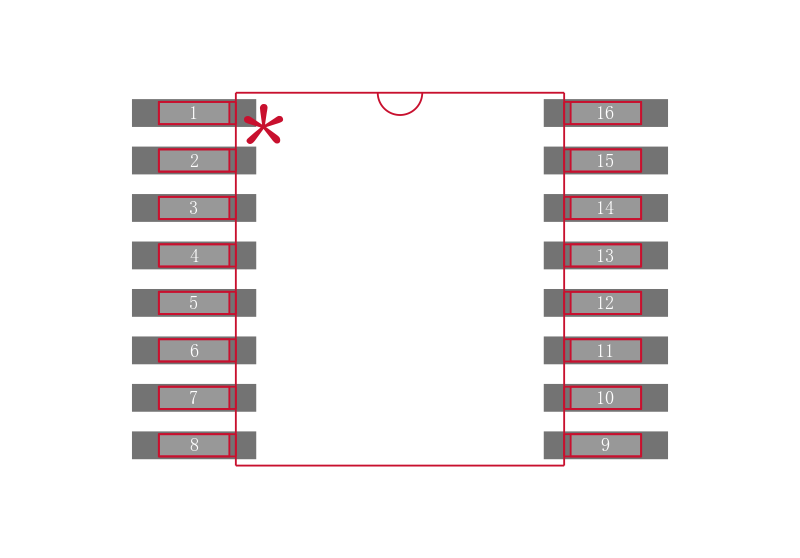

封装 TSSOP-16
封装 TSSOP-16
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD74HC112PWT TI 德州仪器 | 当前型号 | 当前型号 |
CD74HC112PWRE4 德州仪器 | 完全替代 | CD74HC112PWT和CD74HC112PWRE4的区别 |
CD74HC112PWRG4 德州仪器 | 完全替代 | CD74HC112PWT和CD74HC112PWRG4的区别 |
CD74HC112PWE4 德州仪器 | 完全替代 | CD74HC112PWT和CD74HC112PWE4的区别 |
