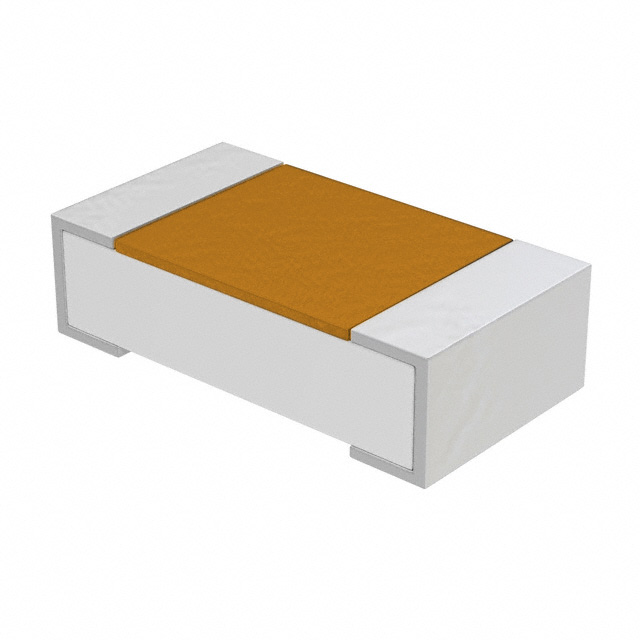

CRCW06031K00FKEAHP图片1

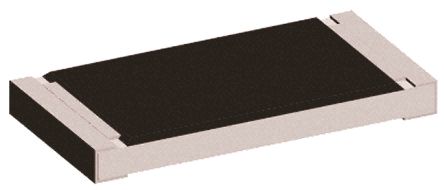

CRCW06031K00FKEAHP图片2
CRCW06031K00FKEAHP图片3
CRCW06031K00FKEAHP图片4
CRCW06031K00FKEAHP图片5
CRCW06031K00FKEAHP概述

VISHAY  CRCW06031K00FKEAHP.  片式电阻器, 表面贴装, AEC-Q200 CRCW系列, 1 kohm, 75 V, 0603 [1608公制], 250 mW, ± 1%

The Vishay CRCW-HP e3 series are pulse proof, high power thick film chip resistors. The CRCW-HP e3 series resistors have pure tin solder contacts on the Ni barrier layer that provides compatibility with the reflow soldering process

.
Excellent pulse load capability
.
Enhanced power rating
.
Double side printed resistor element
.
Protective overglaze
.
AEC-Q200 qualified, rev. C compliant
.
Available in ±0.5%, ±1% and ± 5% tolerance
.
Zero ohm jumper are available for all sizes with very high current
.
Power rating is double than the D/CRCW e3 series
.
Superior antisurge and pulse characteristics compared to D/CRCW e3 series
CRCW06031K00FKEAHP中文资料参数规格
技术参数

额定电压DC 75.0 V

容差 ±1 %

额定功率 0.25 W

电阻 1 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 75 V

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/K

其他

包装方式 Cut Tape CT

制造应用 电源管理, Portable Devices, Consumer Electronics, Automotive, 工业, 便携式器材, 车用, 消费电子产品, Power Management, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买CRCW06031K00FKEAHP
型号: CRCW06031K00FKEAHP
描述:VISHAY  CRCW06031K00FKEAHP.  片式电阻器, 表面贴装, AEC-Q200 CRCW系列, 1 kohm, 75 V, 0603 [1608公制], 250 mW, ± 1%
替代型号CRCW06031K00FKEAHP
型号/品牌 代替类型 替代型号对比

CRCW06031K00FKEAHP

Vishay Semiconductor 威世

当前型号

当前型号

ERJPA3F1001V

松下

功能相似

CRCW06031K00FKEAHP和ERJPA3F1001V的区别
