八路D型触发器，三态 Octal D-Type Flip-Flop, 3-State
Texas Instruments" flip flop device will allow you to easily build and test a circuit based on the state information provided. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
频率 110 MHz
输出接口数 8
输出电流 24.0 mA
电路数 8
通道数 8
时钟频率 110 MHz
位数 8
输入电容 10 pF
输入数 8
工作温度Max 125 ℃
工作温度Min 55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

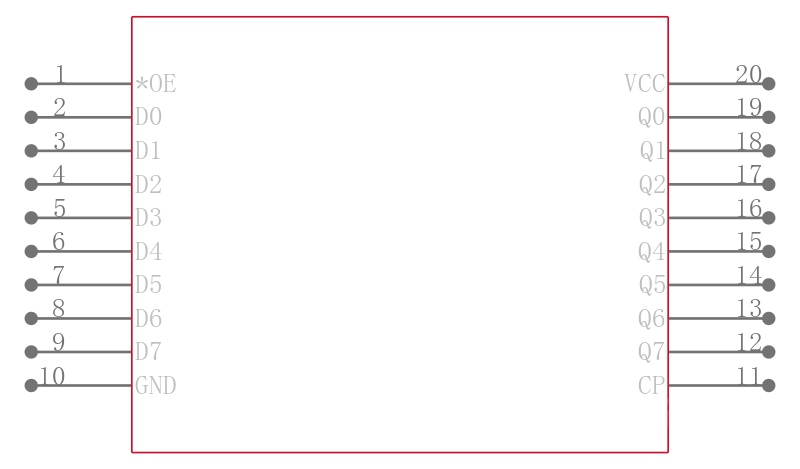

引脚数 20
封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74ACT574ME4 TI 德州仪器 | 当前型号 | 当前型号 |
CD74ACT574M 德州仪器 | 类似代替 | CD74ACT574ME4和CD74ACT574M的区别 |
CD74ACT574M96 德州仪器 | 类似代替 | CD74ACT574ME4和CD74ACT574M96的区别 |
SN74ACT574DWRE4 德州仪器 | 类似代替 | CD74ACT574ME4和SN74ACT574DWRE4的区别 |
