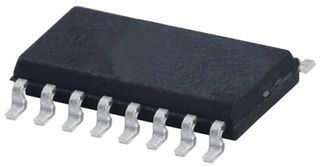

TEXAS INSTRUMENTS CD74HC4511MT 逻辑芯片, 译码器/驱动器/锁存器, BCD-7段, SOIC-16
Make a strong finite state machine by implementing this from Texas Instruments. This decoder has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V min
输出接口数 7
输出电流 4.00 mA
供电电流 8 µA
电路数 2
针脚数 16
位数 7
带宽 28.0 MHz
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
宽度 3.91 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74HC4511MT TI 德州仪器 | 当前型号 | 当前型号 |
CD74HC4511M 德州仪器 | 完全替代 | CD74HC4511MT和CD74HC4511M的区别 |
CD74HC4511M96 德州仪器 | 完全替代 | CD74HC4511MT和CD74HC4511M96的区别 |
CD74HC4511M96E4 德州仪器 | 完全替代 | CD74HC4511MT和CD74HC4511M96E4的区别 |
