8位寄存器具有三态输出 8-BIT REGISTERS WITH 3-STATE OUTPUTS
元件 D 型 位 正边沿 20-SSOP(0.154",3.90mm 宽)
立创商城:
CY74FCT574CTQCT
德州仪器TI:
Octal Edge-Triggered D-Type Flip-Flops with 3-State Outputs
得捷:
IC FF D-TYPE SNGL 8BIT 20QSOP
贸泽:
触发器 Octal Edge-Trig D-Ty F-F W/3-State Otpt
艾睿:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R
安富利:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R
Chip1Stop:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R
Verical:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R
频率 250 MHz
电源电压DC 5.25V max
输出接口数 8
输出电流 64.0 mA
电路数 8
位数 8
极性 Non-Inverting
电压波节 5.00 V
输入电容 5 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 20

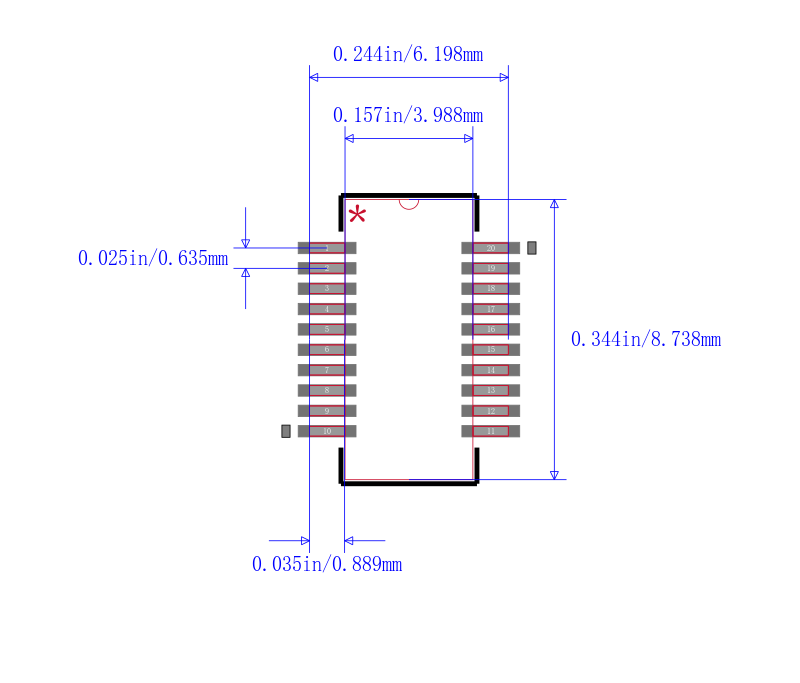

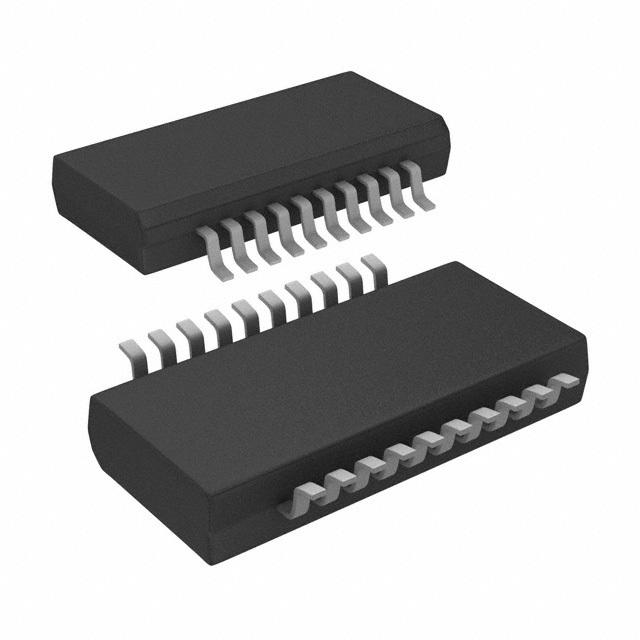

封装 SSOP-20
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CY74FCT574CTQCT TI 德州仪器 | 当前型号 | 当前型号 |
CY74FCT574ATQCTE4 德州仪器 | 完全替代 | CY74FCT574CTQCT和CY74FCT574ATQCTE4的区别 |
CY74FCT2574CTQCT 德州仪器 | 类似代替 | CY74FCT574CTQCT和CY74FCT2574CTQCT的区别 |
