CY74FCT374ATQCT概述

8位寄存器具有三态输出 8-BIT REGISTERS WITH 3-STATE OUTPUTS

The \x92FCT374T devices are high-speed, low-power, octal D-type flip-flops, featuring separate D-type inputs for each flip-flop. These devices have 3-state outputs for bus-oriented applications. A buffered clock CP and output-enable OE\\\\ inputs are common to all flip-flops. The eight flip-flops in the \x92FCT374T store the state of their individual D inputs that meet the setup-time and hold-time requirements on the low-to-high CP transition. When OE\ is low, the contents of the eight flip-flops are available at the outputs. When OE\ is high, the outputs are in the high-impedance state. The state of OE\ does not affect the state of the flip-flops.

These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. View datasheet View product folder

CY74FCT374ATQCT中文资料参数规格
技术参数

频率 250 MHz

电源电压DC 5.00 V, 5.25 V max

输出接口数 8

输出电流 64.0 mA

电路数 8

通道数 8

位数 8

电压波节 5.00 V

输入电容 5 pF

输入数 8

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.75V ~ 5.25V

电源电压Max 5.25 V

电源电压Min 4.75 V

封装参数

安装方式 Surface Mount

引脚数 20

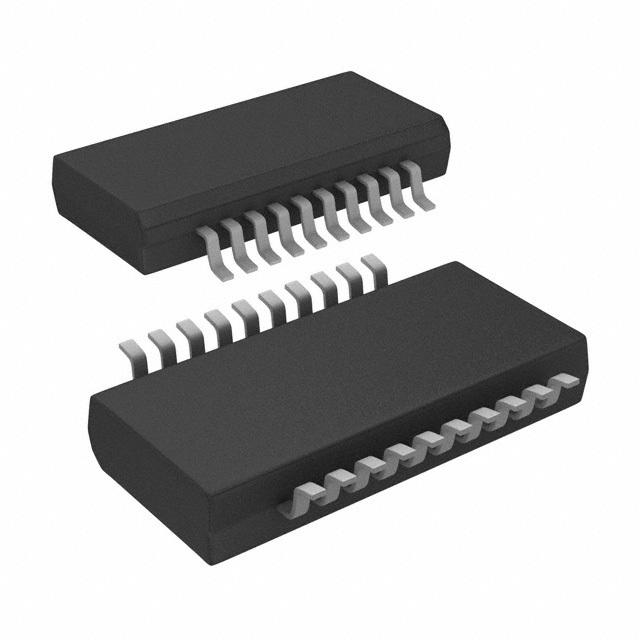

封装 SSOP-20

外形尺寸

长度 8.75 mm

宽度 6.2 mm

高度 1.5 mm

封装 SSOP-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CY74FCT374ATQCT引脚图与封装图
CY74FCT374ATQCT引脚图
CY74FCT374ATQCT封装图
CY74FCT374ATQCT封装焊盘图
在线购买CY74FCT374ATQCT
型号: CY74FCT374ATQCT
制造商: TI 德州仪器
描述:8位寄存器具有三态输出 8-BIT REGISTERS WITH 3-STATE OUTPUTS
