8位寄存器 8-Bit Register
The \x92FCT273T devices consist of eight edge-triggered D-type flip-flops with individual D inputs and Q outputs. The common buffered-clock CP and master-reset MR\\\\ inputs load and reset all flip-flops simultaneously. These devices are edge-triggered registers. The state of each D input one setup time before the low-to-high clock transition is transferred to the corresponding flip-flop\x92s Q output. All outputs are forced low by a low logic level on the MR\ input.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. View datasheet View product folder
电源电压DC 5.25V max
输出接口数 8
输出电流 64.0 mA
电路数 1
位数 8
极性 Non-Inverting
电压波节 5.00 V
输入电容 5 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V

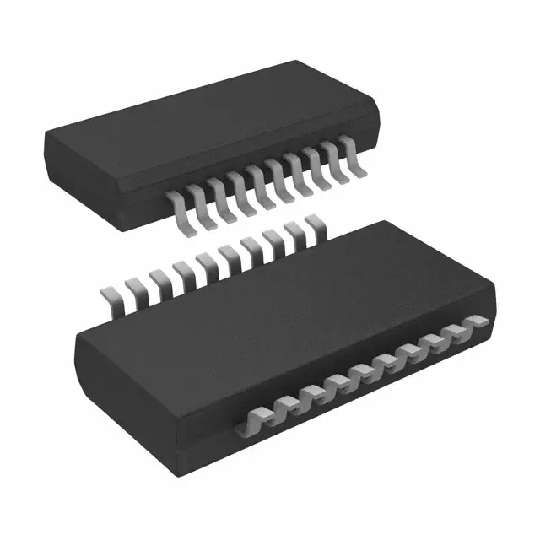

安装方式 Surface Mount
引脚数 20
封装 SSOP-20
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CY74FCT273TQCT TI 德州仪器 | 当前型号 | 当前型号 |
CY74FCT273TSOCT 德州仪器 | 完全替代 | CY74FCT273TQCT和CY74FCT273TSOCT的区别 |
CY74FCT273TSOCE4 德州仪器 | 完全替代 | CY74FCT273TQCT和CY74FCT273TSOCE4的区别 |
CY74FCT273TSOCTG4 德州仪器 | 完全替代 | CY74FCT273TQCT和CY74FCT273TSOCTG4的区别 |
