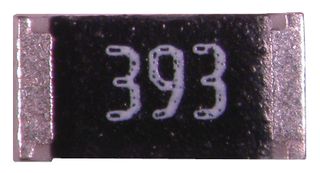

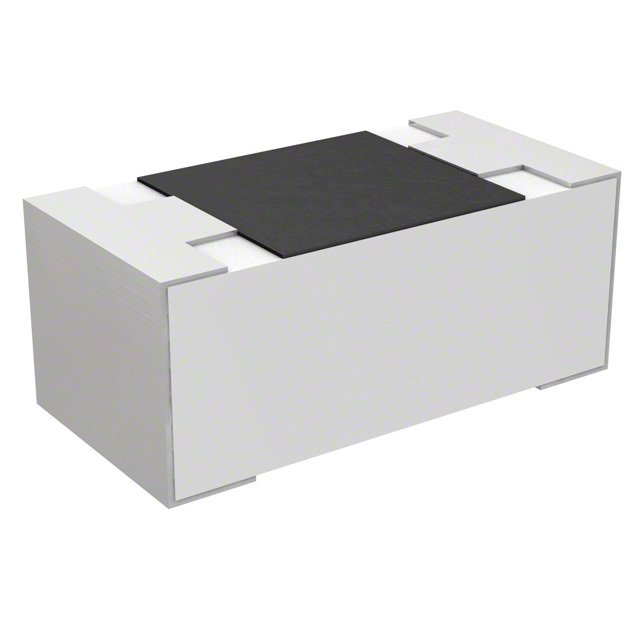

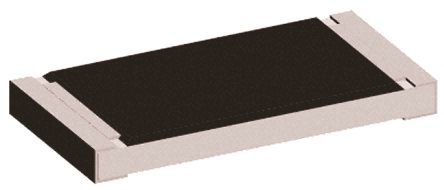

VISHAY CRCW040210K0JNEDIF 片式电阻器, 表面贴装, 厚膜, AEC-Q200 CRCW系列, 10 kohm, 50 V, 0402 [1005公制], 63 mW, ± 5%
The Vishay D/CRCW-IF e3 series Lead Pb-free thick film, rectangular, pulse proof chip resistors. The D/CRCW-IF e3 series resistors have Pure tin plating which provides compatibility with lead Pb-free and lead containing soldering processes.
容差 ±5 %
额定功率 63 mW
电阻 10 kΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/K
包装方式 Cut Tape CT
制造应用 电源管理, Portable Devices, Consumer Electronics, Automotive, 工业, 便携式器材, 车用, 消费电子产品, Power Management, Industrial
RoHS标准 Non-Compliant
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CRCW040210K0JNEDIF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
CRG0402J10K 泰科 | 类似代替 | CRCW040210K0JNEDIF和CRG0402J10K的区别 |
CRG0402J10K/10 泰科 | 功能相似 | CRCW040210K0JNEDIF和CRG0402J10K/10的区别 |
