CY74FCT16373ATPVC

CY74FCT16373ATPVC图片1
CY74FCT16373ATPVC图片2
CY74FCT16373ATPVC图片3
CY74FCT16373ATPVC图片4
CY74FCT16373ATPVC图片5
CY74FCT16373ATPVC图片6
CY74FCT16373ATPVC图片7
CY74FCT16373ATPVC概述

16位锁存器 16-Bit Latches

Ideal for blocking real time information from going through this d-type low-level latch developed by Texas Instruments will exceed your needs. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 16 channels per chip.

CY74FCT16373ATPVC中文资料参数规格
技术参数

电源电压DC 4.50V min

输出接口数 16

输出电流 64.0 mA

电路数 2

通道数 16

位数 16

极性 Non-Inverting

电压波节 5.00 V

静态电流 5.00 µA

输入数 16

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 48

封装 SSOP-48

外形尺寸

长度 15.88 mm

宽度 7.49 mm

高度 2.59 mm

封装 SSOP-48

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

CY74FCT16373ATPVC引脚图与封装图

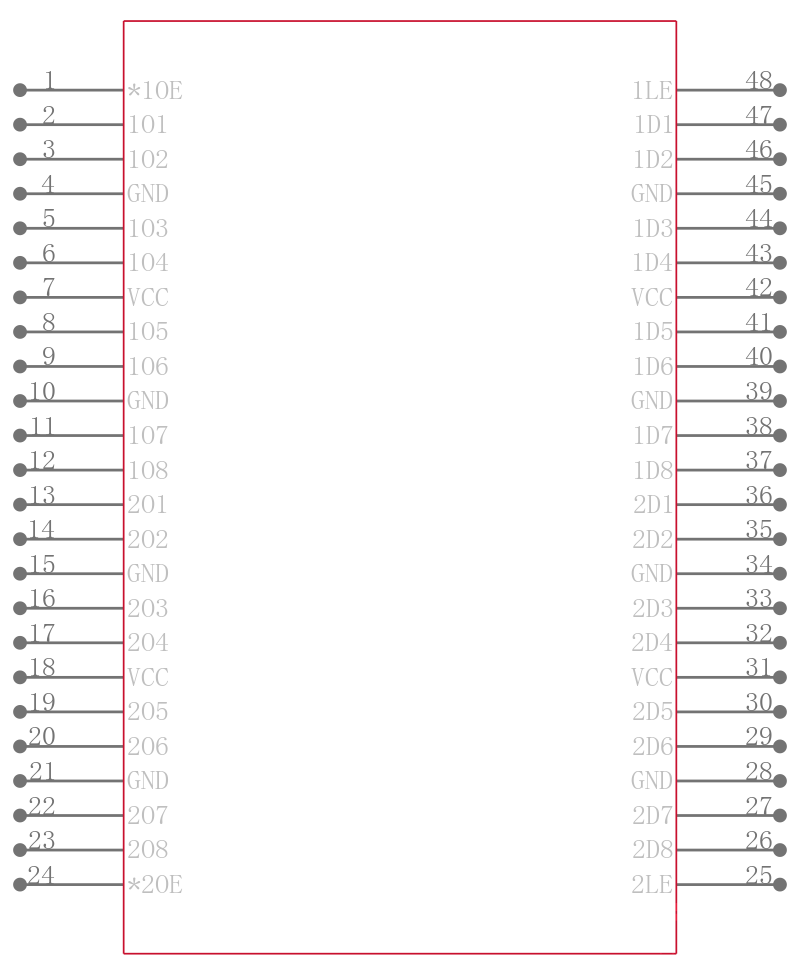

CY74FCT16373ATPVC引脚图

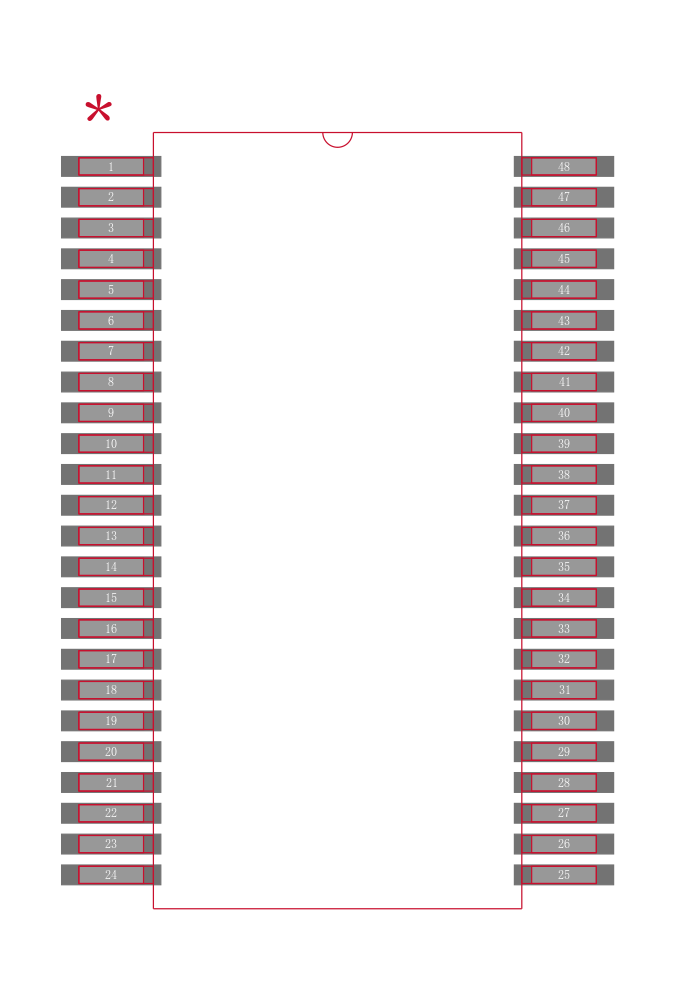

CY74FCT16373ATPVC封装图

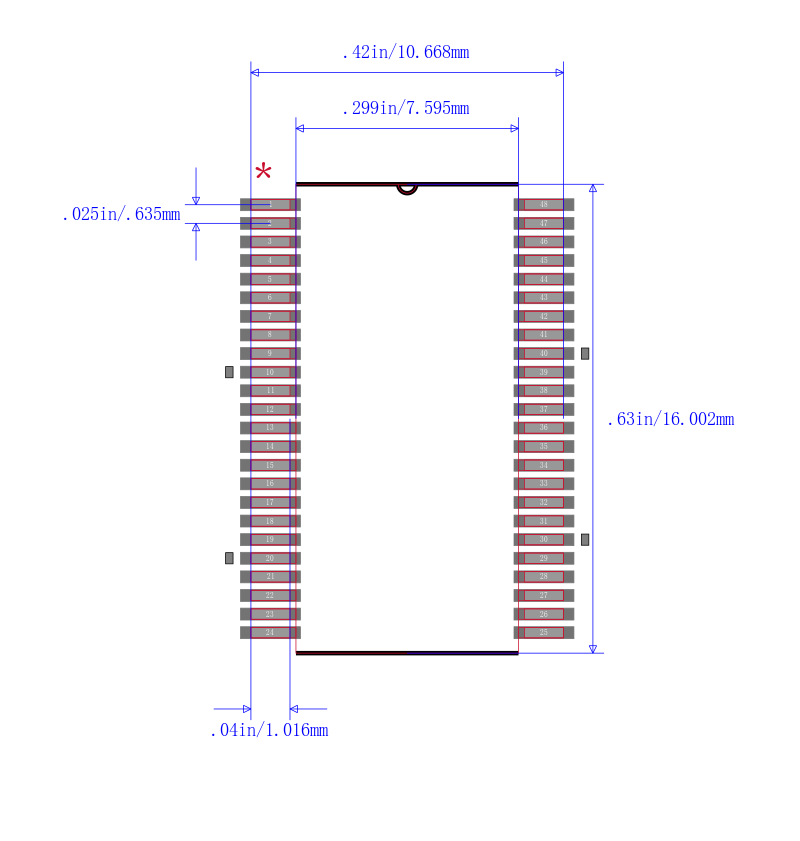

CY74FCT16373ATPVC封装焊盘图
在线购买CY74FCT16373ATPVC
型号: CY74FCT16373ATPVC
制造商: TI 德州仪器
描述:16位锁存器 16-Bit Latches
替代型号CY74FCT16373ATPVC
型号/品牌 代替类型 替代型号对比

CY74FCT16373ATPVC

TI 德州仪器

当前型号

当前型号

74FCT16373ATPVCG4

德州仪器

完全替代

CY74FCT16373ATPVC和74FCT16373ATPVCG4的区别

74FCT16373ATPVCTG4

德州仪器

完全替代

CY74FCT16373ATPVC和74FCT16373ATPVCTG4的区别

74FCT16373ATPVG

艾迪悌

类似代替

CY74FCT16373ATPVC和74FCT16373ATPVG的区别
