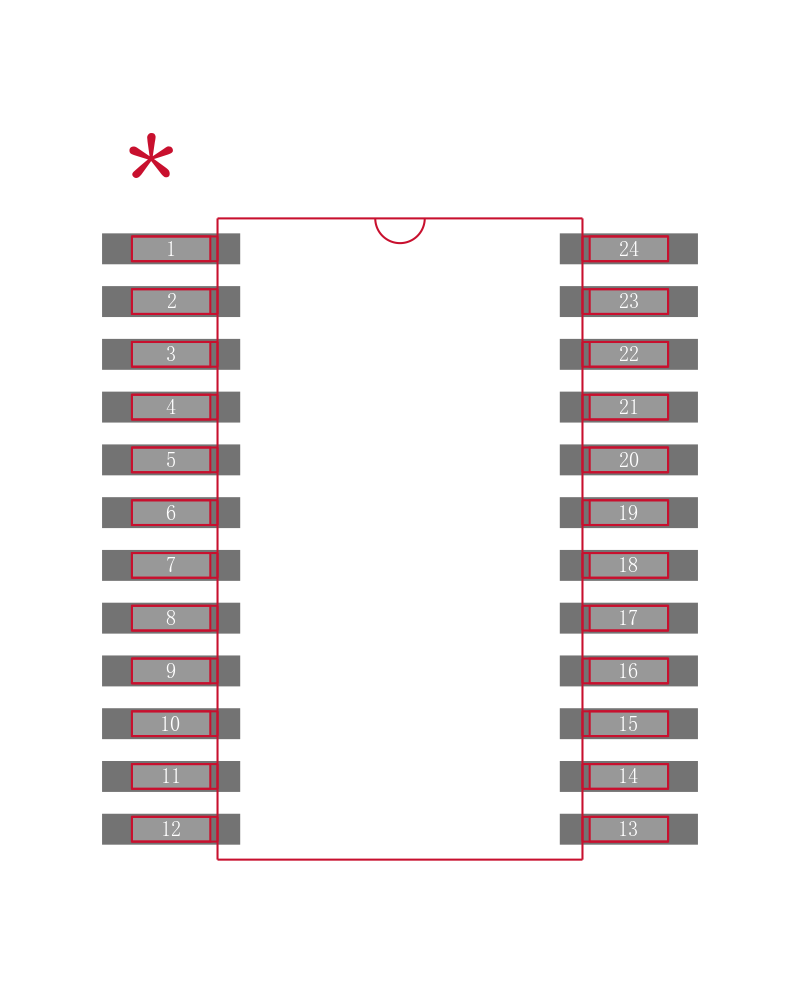

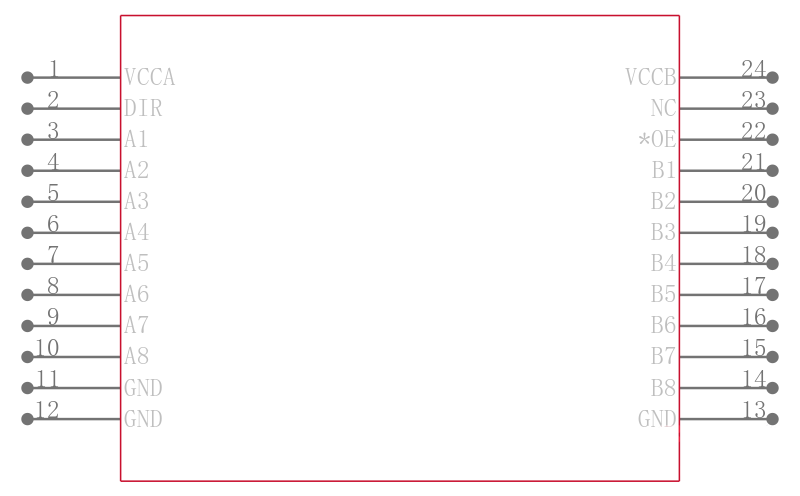

CLVCC3245AIPWREP

具有可调输出电压和三态输出的八路总线收发器 OCTAL BUS TRANSCEIVER WITH ADJUSTABLE OUTPUT VOLTAGE AND 3-STATE OUTPUTS

description/ordering information

This 8-bit octal noninverting bus transceiver contains two separate supply rails. The B port is designed to track VCCB, which accepts voltages from 3 V to 5.5 V, and the A port is designed to track VCCA, which operates at 2.3 V to 3.6 V. This allows for translation from a 3.3-V to a 5-V system environment and vice versa, from a 2.5-V to a 3.3-V system environment and vice versa.

Controlled Baseline

  − One Assembly/Test Site, One Fabrication Site

Enhanced Diminishing Manufacturing Sources DMS Support

Enhanced Product-Change Notification

Qualification Pedigree†

Bidirectional Voltage Translator

2.3 V to 3.6 V on A Port and 3 V to 5.5 V on B Port

Control Inputs VIH/VILLevels Are Referenced to VCCAVoltage

Latch-Up Performance Exceeds 250 mA Per JESD 17

ESD Protection Exceeds JESD 22

  − 2000-V Human-Body Model A114-A

  − 200-V Machine Model A115-A

  − 1000-V Charged-Device Model C101
