CLVTH273MNSREPG4概述

3.3 -V ABT八路D型触发器与Clear 3.3-V ABT OCTAL D-TYPE FLIP-FLOP WITH CLEAR

Thanks to Texas Instruments and their flip flop device, you can ensure that your state information is saved and available for later use. It has a single-ended output signal. This flip flop has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 8 channels per chip.

CLVTH273MNSREPG4中文资料参数规格
技术参数

电源电压DC 2.70V ~ 3.60V

电路数 1

位数 8

传送延迟时间 4.90 ns

电压波节 3.30 V, 2.70 V

输出电流驱动 -500 µA

工作温度Max 125 ℃

工作温度Min -55 ℃

电源电压Max 3.6 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 SOP-20

外形尺寸

长度 12.6 mm

宽度 5.3 mm

高度 1.85 mm

封装 SOP-20

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CLVTH273MNSREPG4引脚图与封装图

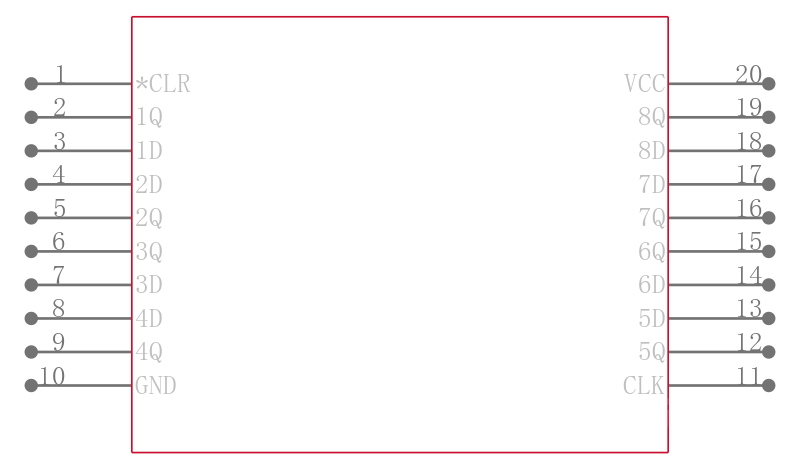

CLVTH273MNSREPG4引脚图
CLVTH273MNSREPG4封装图

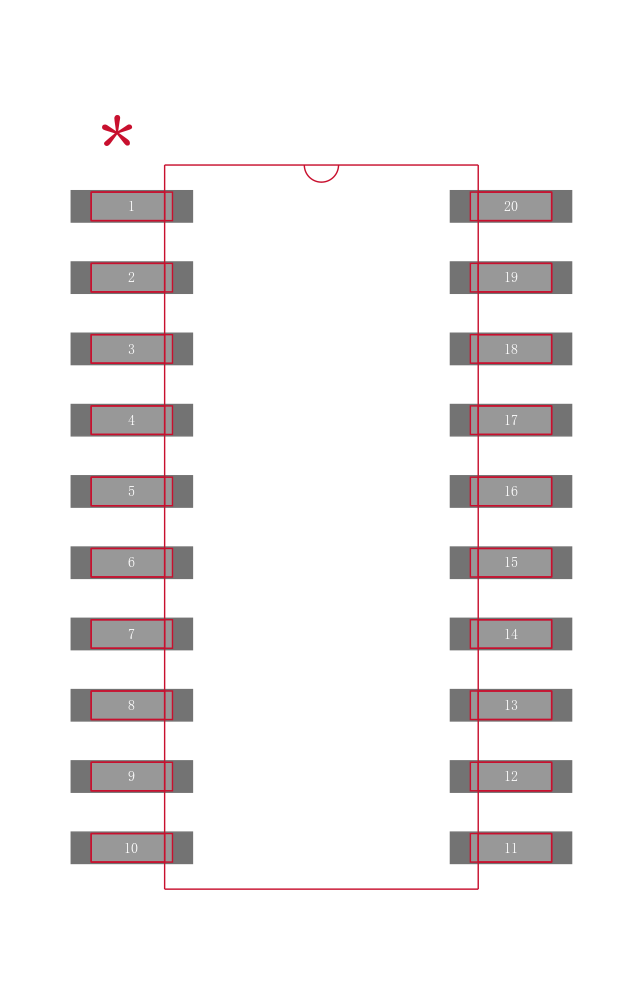

CLVTH273MNSREPG4封装焊盘图
