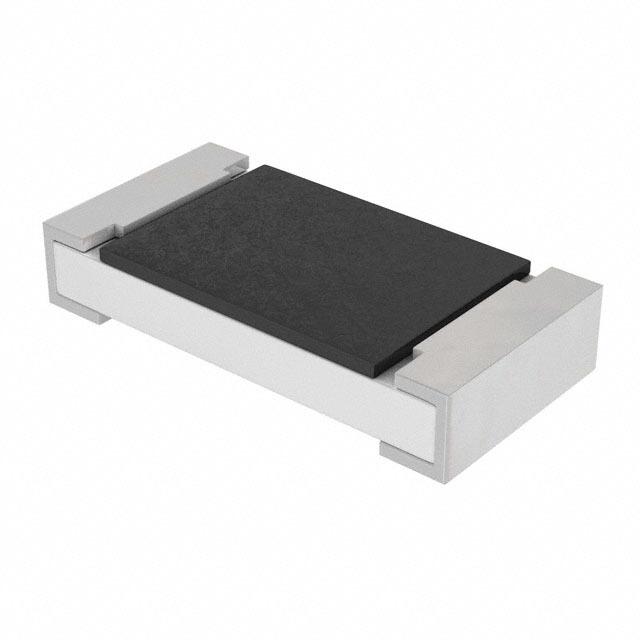

CRCW120622R0FKEAHP图片1

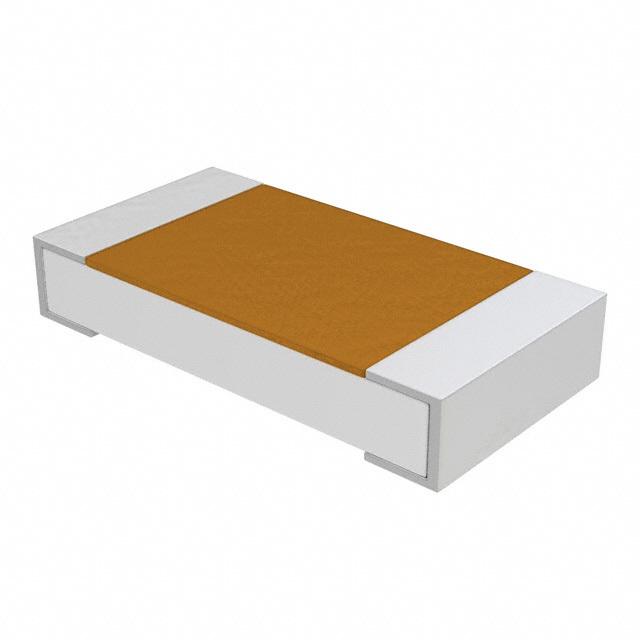

CRCW120622R0FKEAHP图片2

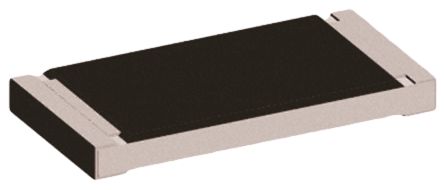

CRCW120622R0FKEAHP图片3

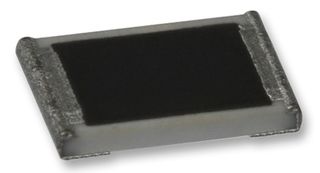

CRCW120622R0FKEAHP图片4
CRCW120622R0FKEAHP图片5
CRCW120622R0FKEAHP概述

1206 高功率厚膜片式电阻器,CRCW HP e3 系列 - 0.5W极佳的脉冲负载能力 增强的额定功率 双侧印刷电阻元件 高品质陶瓷金属上釉 保护盖上釉 极好的稳定性(70 °C 时,ΔR/R ≤ 1 % 1000 小时) 镍挡板层无铅焊接触点 纯锡镀层与无铅和含铅焊接工艺兼容 ### 厚膜 - 1206

The Vishay CRCW-HP e3 series are automotive grade pulse proof, high power thick film chip resistors. The resistance range includes E96 and E24 decade values from 1ohm to 1Mohm. CRCW-HP e3 series resistors have pure tin solder contacts on the Ni barrier layer that provides compatibility with reflow soldering process. They are ideal for high repetitive surge and pulse loading applications. These resistors series are perfect choice for most fields of power measurement electronics where reliability, stability, high power rating and excellent pulse load performance are of major concern. CRCW-HP e3 series have power rating double than the D/CRCW e3 series.

.
Automotive grade AEC-Q200 qualified
.
EIA 0402, 0603, 0805, 1206, 1210, 1218, 2010 and 2512 standard case sizes available
.
Excellent pulse load capability and enhanced power rating
.
Double side printed resistor element and protective overglaze
.
Available in 50V, 75V, 150V, 200V, 400V and 500V operating voltages
.
Available in ±0.5%, ±1% and ±5% tolerance and ±200ppm/K, ±100ppm/K temperature coefficient values
.
Zero ohm jumpers are available for all sizes with very high current
.
Operating temperature range from -55°C to 155°C
.
Superior antisurge and pulse characteristics compared to D/CRCW e3 series
.
0.2W, 0.25W, 0.5W, 0.75W, 1W and 1.5W rated dissipations at 70°C
CRCW120622R0FKEAHP中文资料参数规格
技术参数

额定电压DC 200 V

容差 ±1 %

额定功率 500 mW

电阻 22 Ω

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 200 V

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.1 mm

宽度 1.6 mm

高度 0.5 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/K

其他

包装方式 Cut Tape CT

制造应用 Portable Devices, Consumer Electronics, Automotive, Power Management, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买CRCW120622R0FKEAHP
型号: CRCW120622R0FKEAHP
描述:1206 高功率厚膜片式电阻器,CRCW HP e3 系列 - 0.5W 极佳的脉冲负载能力 增强的额定功率 双侧印刷电阻元件 高品质陶瓷金属上釉 保护盖上釉 极好的稳定性(70 °C 时,ΔR/R ≤ 1 % 1000 小时) 镍挡板层无铅焊接触点 纯锡镀层与无铅和含铅焊接工艺兼容 ### 厚膜 - 1206
替代型号CRCW120622R0FKEAHP
型号/品牌 代替类型 替代型号对比

CRCW120622R0FKEAHP

Vishay Semiconductor 威世

当前型号

当前型号

MCHP06W2F220JT5E

Multicomp

功能相似

CRCW120622R0FKEAHP和MCHP06W2F220JT5E的区别
