3.30V ABT 16位透明D类具有三态输出锁存 3.30V ABT 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS
Say goodbye to real time information seeping through logic gates by using this d-type low-level latch from Texas Instruments. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 16 channels per chip.
电源电压DC 2.70V ~ 3.60V
输出电流 64.0 mA
电路数 2
通道数 16
位数 16
电压波节 3.30 V, 2.70 V
静态电流 5 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount

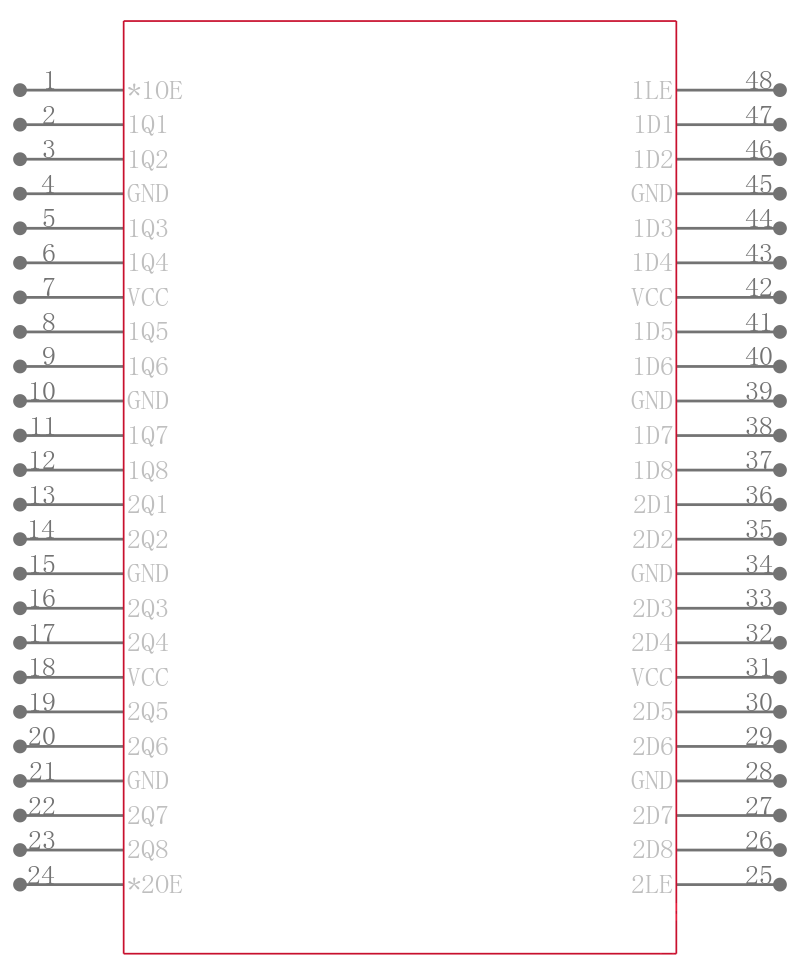

引脚数 48

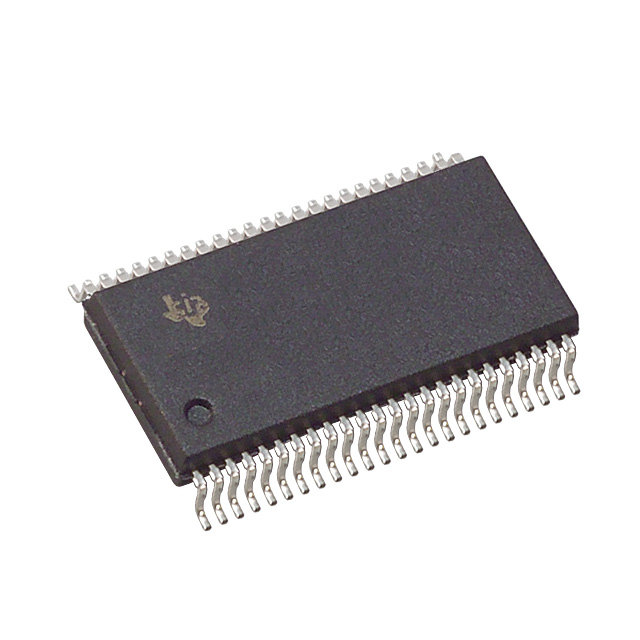

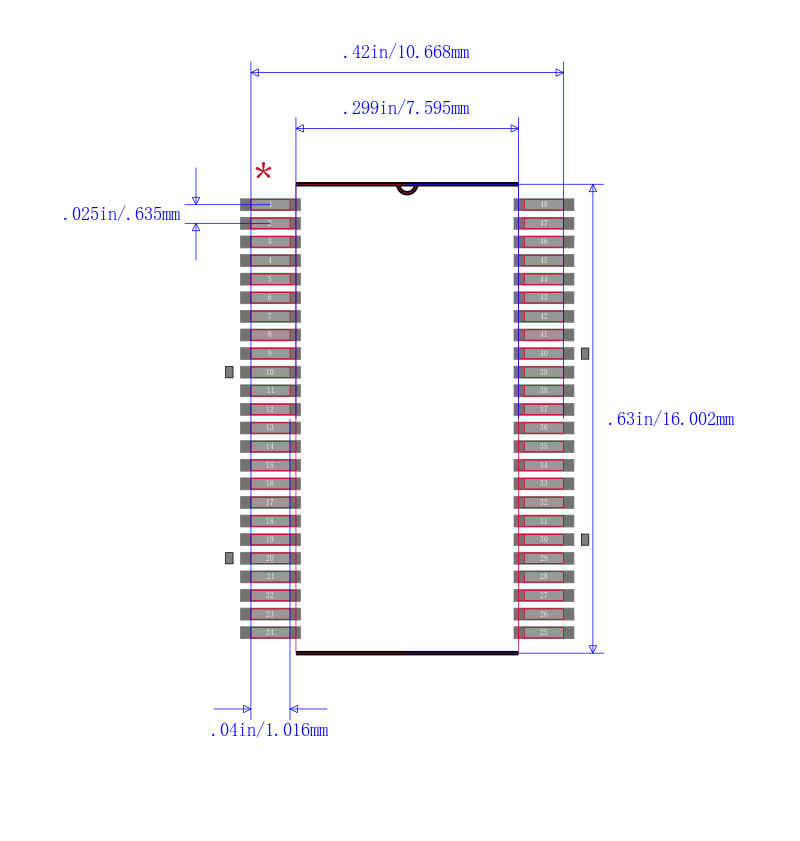

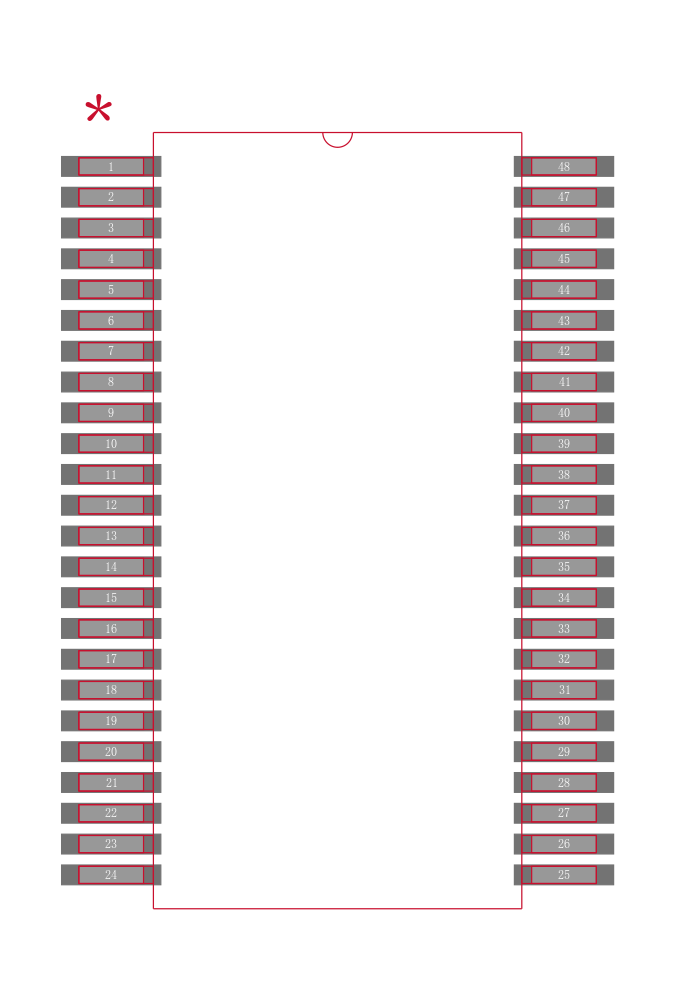

封装 SSOP-48
长度 15.88 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CLVTH16373IDLREP TI 德州仪器 | 当前型号 | 当前型号 |
V62/04712-01YE 德州仪器 | 完全替代 | CLVTH16373IDLREP和V62/04712-01YE的区别 |
SN74LVTH16373DL 德州仪器 | 类似代替 | CLVTH16373IDLREP和SN74LVTH16373DL的区别 |
SN74LVTH16373DLR 德州仪器 | 类似代替 | CLVTH16373IDLREP和SN74LVTH16373DLR的区别 |
