CAY16-101J8LF

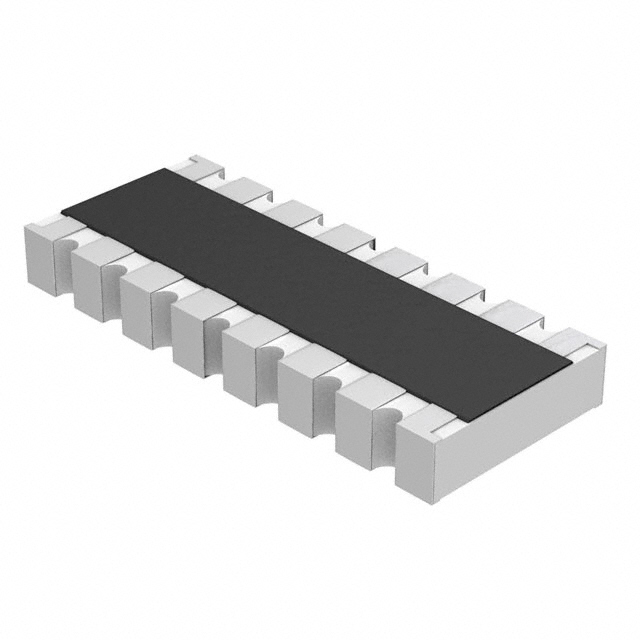

CAY16-101J8LF图片1
CAY16-101J8LF图片2
CAY16-101J8LF图片3
CAY16-101J8LF图片4
CAY16-101J8LF图片5
CAY16-101J8LF图片6
CAY16-101J8LF图片7
CAY16-101J8LF图片8
CAY16-101J8LF概述

固定阵列电阻, 100 ohm, CAY16 Series, 8 元件, 隔离, 1506 [3815公制], 16 引脚

Create more space in your circuit design by using this resistor array developed by Bourns that packs multiple resistors into one IC chip. This product"s 8 resistors have a value of 100 Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 16 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 5%. This product is 3.8 mm long, 0.5 mm tall and 1.6 mm deep. The CAY16-101J8LF part has a convex termination style. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. This product"s terminal pitch is 0.5 mm.

CAY16-101J8LF中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.25 W

电路数 8

针脚数 16

电阻 100 Ω

阻值偏差 ±5 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 25 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 SMD

外形尺寸

长度 3.8 mm

宽度 1.6 mm

高度 0.5 mm

封装 SMD

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买CAY16-101J8LF
型号: CAY16-101J8LF
制造商: Bourns J.W. Miller 伯恩斯
描述:固定阵列电阻, 100 ohm, CAY16 Series, 8 元件, 隔离, 1506 [3815公制], 16 引脚
