CD74FCT843AM概述

的BiCMOS FCT接口逻辑, 9位透明锁存器,三态 BiCMOS FCT Interface Logic, 9-Bit Transparent Latches, Three-State

Ideal for logic level devices this d-type low-level latch manufactured by Texas Instruments will meet your needs. With a 3-state output, this is power management at its best. This latch has an operating temperature range of 0 °C to 70 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. It has 9 channels per chip.

CD74FCT843AM中文资料参数规格
技术参数

电源电压DC 5.00 V, 5.25 V max

输出接口数 9

输出电流 48.0 mA

位数 9

极性 Non-Inverting

输入数 9

工作温度Max 70 ℃

工作温度Min 0 ℃

电源电压 4.75V ~ 5.25V

封装参数

安装方式 Surface Mount

引脚数 24

封装 SOIC-24

外形尺寸

封装 SOIC-24

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

数据手册

CD74FCT843AM引脚图与封装图

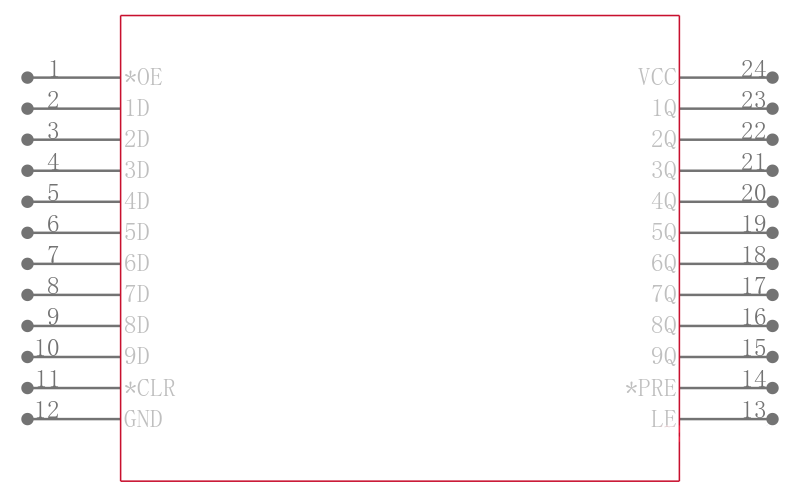

CD74FCT843AM引脚图
CD74FCT843AM封装图

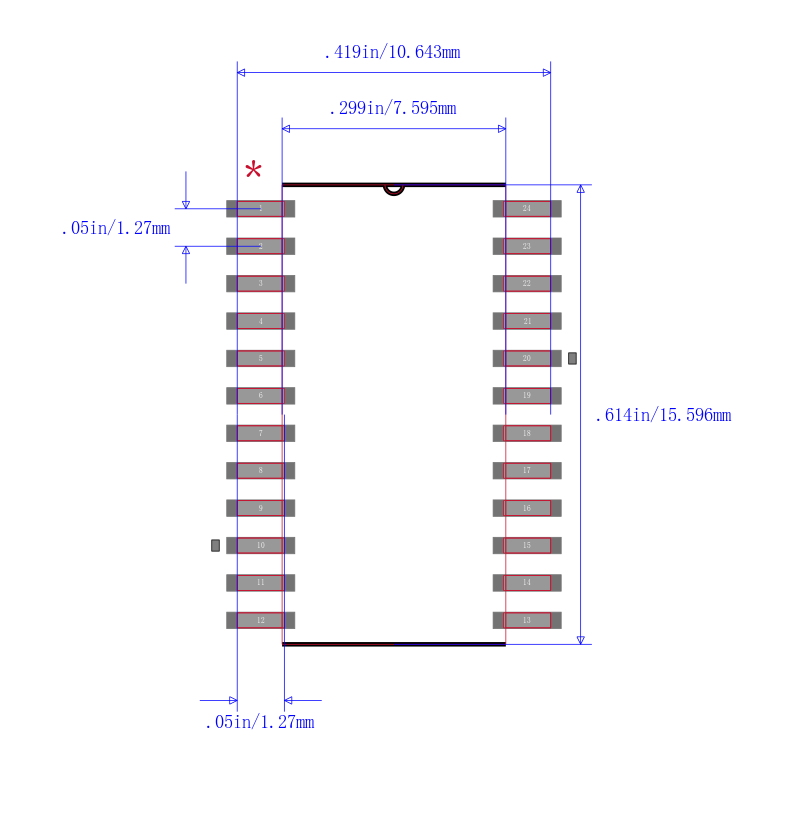

CD74FCT843AM封装焊盘图
在线购买CD74FCT843AM
型号: CD74FCT843AM
制造商: TI 德州仪器
描述:的BiCMOS FCT接口逻辑, 9位透明锁存器,三态 BiCMOS FCT Interface Logic, 9-Bit Transparent Latches, Three-State
替代型号CD74FCT843AM
型号/品牌 代替类型 替代型号对比

CD74FCT843AM

TI 德州仪器

当前型号

当前型号

CD74FCT843AM96

德州仪器

完全替代

CD74FCT843AM和CD74FCT843AM96的区别

CD74FCT843AME4

德州仪器

完全替代

CD74FCT843AM和CD74FCT843AME4的区别

CY74FCT827CTQCT

德州仪器

类似代替

CD74FCT843AM和CY74FCT827CTQCT的区别
