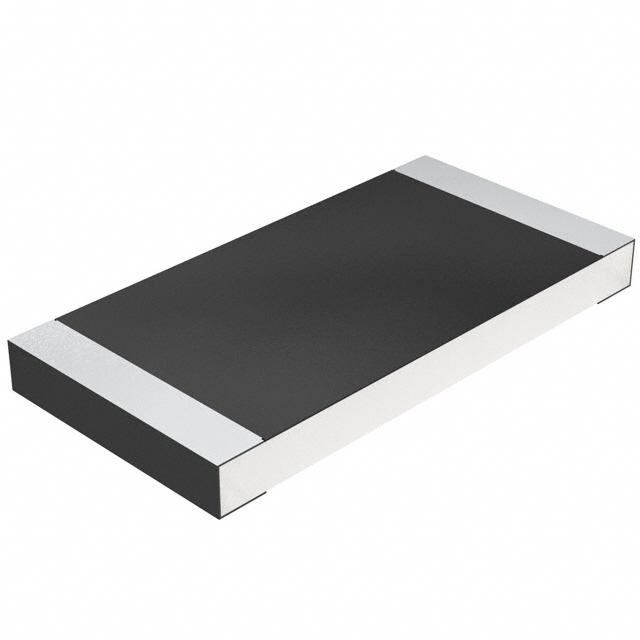

VISHAY CRCW25121M00FKEG. 厚膜片式电阻, 1MΩ, 1W, 1%, 整卷
The Vishay D/CRCW e3 series are standard thick film chip resistors. The resistance range includes E96 and E24 decade values from 1ohm to 10Mohm. CRCW e3 series resistors have a pure tin solder contacts on the Ni barrier layer that provides compatibility with reflow soldering process.
额定电压DC 500 V
容差 ±1 %
额定功率 1 W
电阻 1 MΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 500 V
安装方式 Surface Mount
引脚数 2
封装公制 2512
封装 2512
长度 6.3 mm
宽度 3.15 mm
高度 0.6 mm
封装公制 2512
封装 2512
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/K
包装方式 Cut Tape CT
制造应用 电源管理, Portable Devices, Consumer Electronics, Automotive, 工业, 便携式器材, 车用, 消费电子产品, Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CRCW25121M00FKEG Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
HVC2512-1M0FT18 TT Electronics/Welwyn | 功能相似 | CRCW25121M00FKEG和HVC2512-1M0FT18的区别 |
ERJ1TNF1004U 松下 | 功能相似 | CRCW25121M00FKEG和ERJ1TNF1004U的区别 |
ERJU1TF1004U 松下 | 功能相似 | CRCW25121M00FKEG和ERJU1TF1004U的区别 |
