CAT25-331JALF

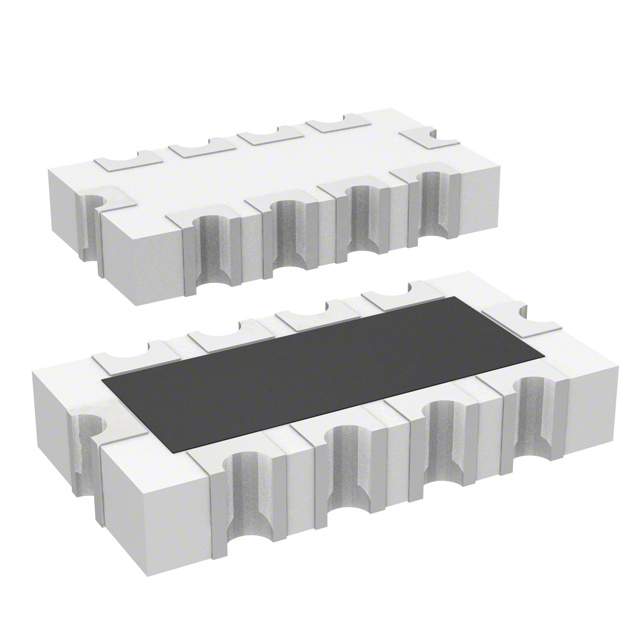

CAT25-331JALF图片1

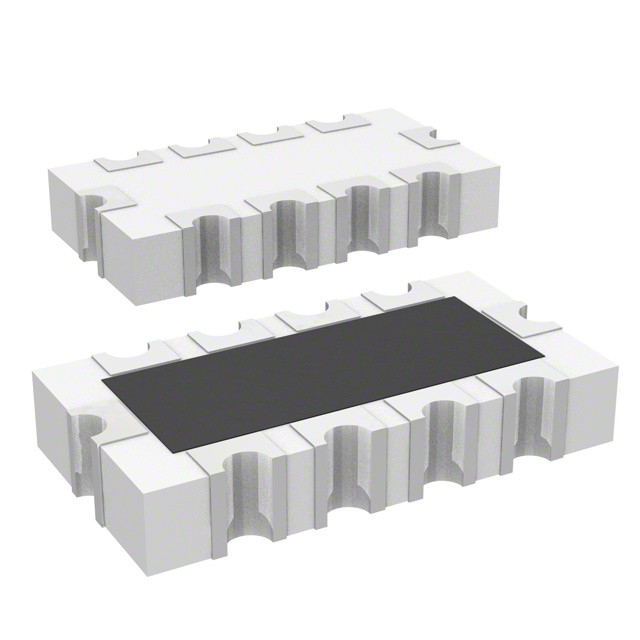

CAT25-331JALF图片2
CAT25-331JALF图片3
CAT25-331JALF图片4
CAT25-331JALF图片5
CAT25-331JALF图片6
CAT25-331JALF图片7
CAT25-331JALF概述

CAT25 - 厚膜片式电阻阵列 CAT25 - Thick Film Chip Resistor Arrays

Looking to save space and power in your circuit design? The resistor array from Bourns gives you a solution by combining multiple resistors into a single chip. This product"s 8 resistors have a value of 330 Ohm. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. It has 10 terminals. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product"s terminal pitch is 0.8 mm. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 5%. The CAT25-331JALF part has a concave termination style. This product is 4 mm long, 0.55 mm tall and 2.1 mm deep. This device utilizes thick film technology.

CAT25-331JALF中文资料参数规格
技术参数

容差 ±5 %

电阻 330 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 10

封装 1608

外形尺寸

长度 4 mm

宽度 2.1 mm

高度 0.55 mm

封装 1608

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买CAT25-331JALF
型号: CAT25-331JALF
制造商: Bourns J.W. Miller 伯恩斯
描述:CAT25 - 厚膜片式电阻阵列 CAT25 - Thick Film Chip Resistor Arrays
替代型号CAT25-331JALF
型号/品牌 代替类型 替代型号对比

CAT25-331JALF

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

CAT25-331JA

伯恩斯

功能相似

CAT25-331JALF和CAT25-331JA的区别
