Res Thick Film Array 4.7KΩ 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 16Pin 25068 X 0603 Concave SMD T/R

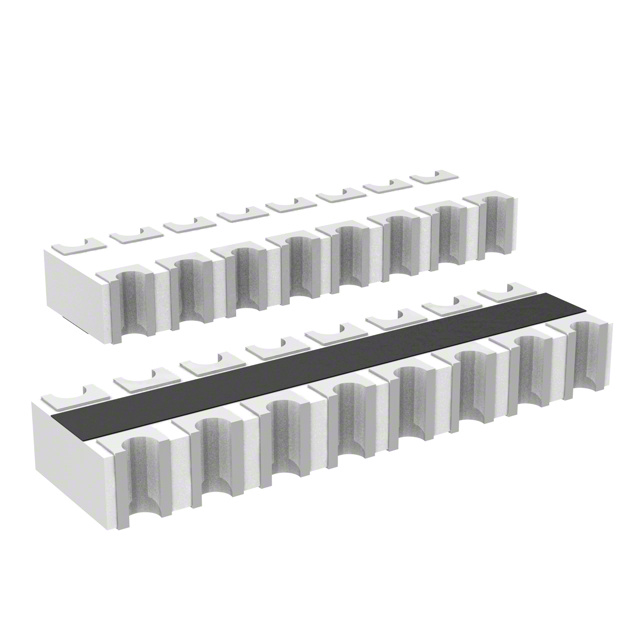

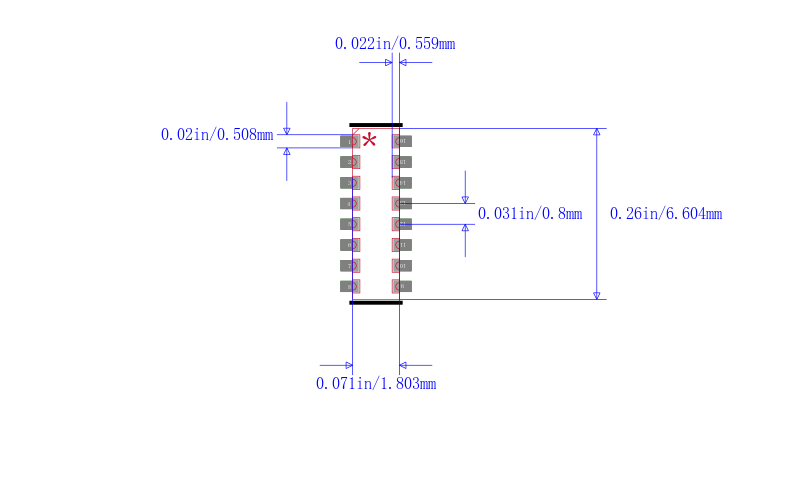

Use this resistor array from Bourns to conserve space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product"s 8 resistors have a value of 4.7K Ohm. It has 16 terminals. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This part has an operating temperature of -55 to 125 °C. This product is 6.4 mm long, 0.6 mm tall and 1.6 mm deep. It has a tolerance of 5%. The CAT16-472J8LF part has a concave termination style. This device is made with thick film technology. This product"s terminal pitch is 0.8 mm.
