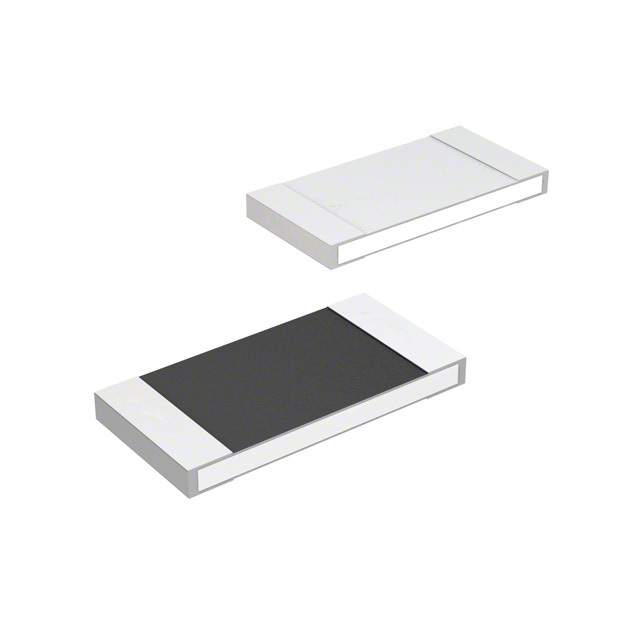

BOURNS CRM2512-FX-1R00ELF 电流感应电阻器, 表面安装, CRM系列, 1 ohm, 2 W, ± 1%, 2512 [6432公制]
The is a thick-film Pulse Resistant Power Resistor with a rating of 2W in a standard 2512 chip format and temperature coefficient at 100PPM.
欧时:
Resistor current sense 2W 1% 2512 1R
立创商城:
1Ω ±1% 2W
得捷:
RES SMD 1 OHM 1% 2W 2512
贸泽:
Thick Film Resistors - SMD 2watts 1% 1ohms 100 PPM 2512
e络盟:
电流感应电阻器, 表面安装, 1 ohm, CRM Series, 2512 [6432公制], 2 W, ± 1%, 厚膜
艾睿:
This is a CRM2512-FX-1R00ELF fixed single surface-mount resistor from Bourns. This dependable part has a power rating of 2 W. This product has a resistance value of 1 Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 6.3 mm long, 0.6 mm tall and 3.1 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology.
安富利:
Res Thick Film 2512 1 Ohm 1% 2W ±100ppm/°C Molded SMD SMD Paper T/R
Verical:
Res Thick Film 2512 1 Ohm 1% 2W ±100ppm/C Pad SMD T/R
Newark:
# BOURNS CRM2512-FX-1R00ELF SMD Current Sense Resistors, CRM Series, 1 ohm, 2 W, - 1%, 300 V, 2512 [6432 Metric]
MASTER:
Res Thick Film 2512 1 Ohm 1% 2W ±100ppm/°C Pad SMD T/R
Online Components:
Res Thick Film 2512 1 Ohm 1% 2W ±100ppm/°C Molded SMD T/R
Electro Sonic:
Res Thick Film 2512 1 Ohm 1% 2W ±100ppm/°C Pad SMD T/R
额定电压DC 300 V
容差 ±1 %
额定功率 2 W
产品系列 CRM
电阻 1 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 300 V
安装方式 Surface Mount
封装公制 6432
封装 2512
长度 6.3 mm
宽度 3.1 mm
高度 0.6 mm
封装公制 6432
封装 2512
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 电机驱动与控制, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CRM2512-FX-1R00ELF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CRS2512AFX-1R00ELF 伯恩斯 | 完全替代 | CRM2512-FX-1R00ELF和CRS2512AFX-1R00ELF的区别 |
CRM2512-JW-1R0ELF 伯恩斯 | 功能相似 | CRM2512-FX-1R00ELF和CRM2512-JW-1R0ELF的区别 |
