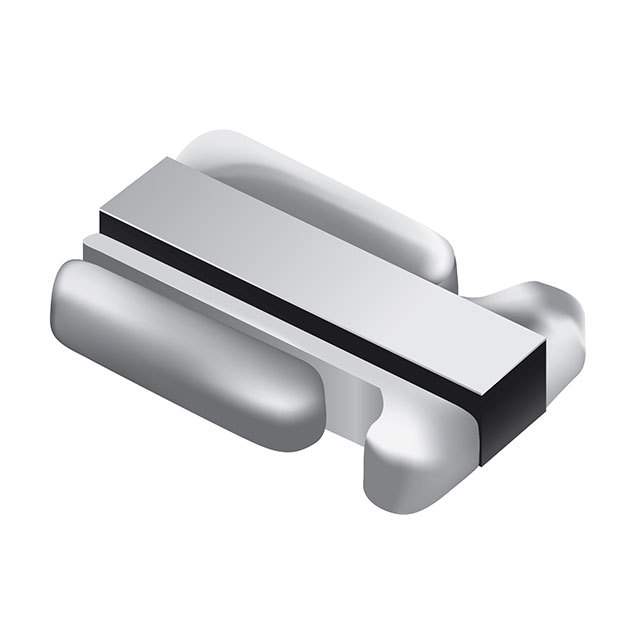

BOURNS CST0612-FC-R0015E 电流感应电阻器, 表面安装, AEC-Q200, CST Series, 1500 µohm, 1 W, ± 1%, 0612 [1632公制]
CST 系列 0612 格式 - 电流感应
Bourns CST0612 金属合金板电流感应表面安装器。
**特点和优势：**
四端子设计，带金属合金板
提供低电感值，低于 1 nH
高精确度和可靠性
符合 RoHS 标准且无卤
### 产品应用信息
CST0612 电流感应电阻器符合 AEC-Q200，适用于汽车应用。典型应用包括自动化和导航设备、精密电路、打印机和电流感应。
### 标准
符合 AEC-Q200
立创商城:
1.5mΩ ±1% 1W
得捷:
RES 0.0015 OHM 1% 1W 0612
欧时:
Bourns CST0612 系列 1W 1.5mΩ 金属合金条 电流感应SMD 电阻器 CST0612-FC-R0015E, ±1%, ±200ppm/°C
贸泽:
电流传感电阻器 - SMD .0015ohms 1W 1% 0612 4TERM RES
e络盟:
电流感应电阻器, 表面安装, AEC-Q200, 0.0015 ohm, CST Series, 0612 [1632公制], 1 W, ± 1%, 电流检测
艾睿:
Use this CST0612-FC-R0015E fixed single surface-mount resistor from Bourns to obtain a visually clean layout. This product has a resistance value of 1.5m Ohm. This part has a power rating of 1 W. It is also complete with current sensing technology. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes metal alloy technology. This part has an operating temperature of -55 to 170 °C. It has a tolerance of 1%. The CST0612-FC-R0015E part has a wide terminal termination style. This product is 1.65 mm long, 0.65 mm tall and 3.05 mm deep.
安富利:
CST0612 Metal Strip Current Sense Resistor 0612 Size 1.5m Ohm 1% 1 W 200 ppm/°C 2-Pin SMD Embossed T/R
Verical:
Res Metal Alloy 0612 0.0015 Ohm 1% 1W ±200ppm/C Wide Terminal SMD Automotive Medical T/R
Newark:
# BOURNS CST0612-FC-R0015E RESISTOR, CURRENT SENSE, 0R0015, 0612
Electro Sonic:
Res Metal Alloy 0612 0.0015 Ohm 1% 1W ±200ppm/°C Wide Terminal SMD Automotive Medical T/R
