CRCW12066M49FKEA

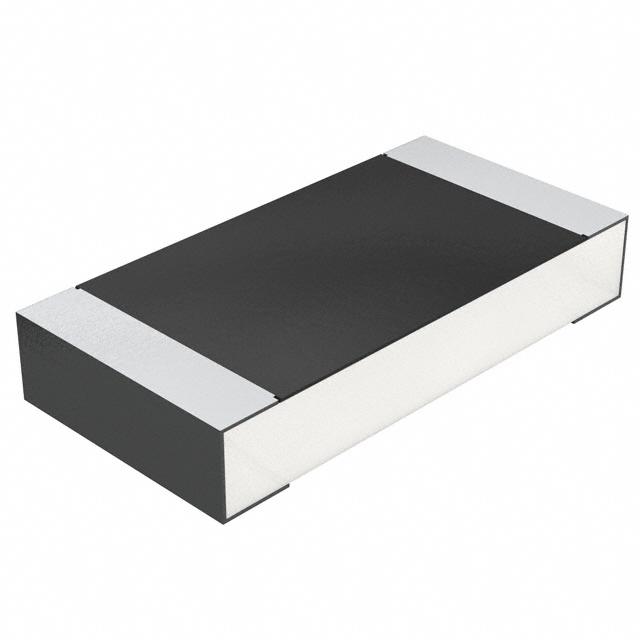

CRCW12066M49FKEA图片1
CRCW12066M49FKEA图片2
CRCW12066M49FKEA图片3
CRCW12066M49FKEA图片4
CRCW12066M49FKEA概述

VISHAY CRCW12066M49FKEA SMD Chip Resistor, Thick Film, 6.49Mohm, 200V, 1206 [3216 Metric], 0.25W1/4W, ± 1%, CRCW Series

The Vishay D/CRCW e3 series are standard thick film chip resistors. The resistance range includes E96 and E24 decade values from 1ohm to 10Mohm. CRCW e3 series resistors have a pure tin solder contacts on the Ni barrier layer that provides compatibility with reflow soldering process.

.
Automotive grade AEC-Q200 qualified
.
EIA 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512 standard case sizes available
.
Stability ΔR/R = 1% for 1000h at 70°C
.
Metal glaze on high quality ceramic
.
Zero ohm jumper are available for all sizes
.
2mm pitch packaging option for 0603 size
.
Available in ±1% and ±5% tolerance
.
±100ppm/K and ±200ppm/K TCR values available
.
Operating temperature range -55°C to +155°C
.
Maximum power rating is 1W
CRCW12066M49FKEA中文资料参数规格
技术参数

额定电压DC 200 V

额定功率 250 mW

电阻 6.49 MΩ

阻值偏差 ±1 %

额定电压 200 V

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 3216

封装 1206

外形尺寸

长度 3.20 mm

宽度 1.60 mm

高度 550 µm

封装公制 3216

封装 1206

物理参数

温度系数 ±100 ppm/℃

其他

包装方式 Tape & Reel TR

制造应用 Industrial, Automotive, Consumer Electronics, Portable Devices, Power Management

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买CRCW12066M49FKEA
型号: CRCW12066M49FKEA
描述:VISHAY CRCW12066M49FKEA SMD Chip Resistor, Thick Film, 6.49Mohm, 200V, 1206 [3216 Metric], 0.25W1/4W, ± 1%, CRCW Series
