CAT16-LV4F12LF

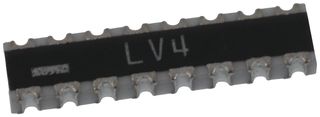

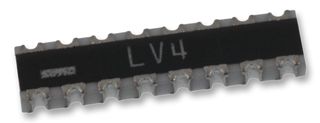

CAT16-LV4F12LF图片1
CAT16-LV4F12LF图片2
CAT16-LV4F12LF图片3
CAT16-LV4F12LF图片4
CAT16-LV4F12LF图片5
CAT16-LV4F12LF图片6
CAT16-LV4F12LF图片7
CAT16-LV4F12LF图片8
CAT16-LV4F12LF图片9
CAT16-LV4F12LF图片10
CAT16-LV4F12LF概述

BOURNS  CAT16-LV4F12LF.  电阻阵列, 4X, 165Ω 1% SMD

140,165 欧姆 ±1% 62.5mW 每元件功率 总线式 12 器网络,阵列 ±200ppm/°C 2506,凹陷,长边端子


得捷:
RES ARRAY 12 RES MULT OHM 2506


贸泽:
Resistor Networks & Arrays TERMINATION NETWRK


艾睿:
Are you looking for a power-saving component that can be implemented in your circuit design? Bourns brings you their CAT16-LV4F12LF resistor array, essentially an IC chip with multiple resistors built in. Its temperature coefficient is ±200 ppm/°C. This product&s;s 12 resistors have a value of 165/140 Ohm. This dependable part has a power rating per resistor of 0.063 1/16 W. It has 16 terminals. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 6.4 mm long, 0.6 mm tall and 1.6 mm deep. It has a tolerance of 1%. The CAT16-LV4F12LF part has a concave termination style. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.8 mm.


安富利:
Res Array 165 Ohm/140 Ohm 1% ±200ppm/°C LADDER Molded 16-Pin 2506 Concave SMD T/R


Chip1Stop:
Res Array 165 Ohm/140 Ohm 1% ±200ppm/℃ LADDER Molded 16-Pin 2506 Concave SMD T/R


Verical:
Res Array 165 Ohm/140 Ohm 1% ±200ppm/C LADDER Molded 16-Pin 2506 Concave SMD T/R


Newark:
# BOURNS  CAT16-LV4F12LF  Fixed Network Resistor, Isolated, 165 ohm, 5 V, 4 Elements, Isolated, SMD, 62.5 mW


MASTER:
Res Array 165 Ohm/140 Ohm 1% ±200ppm/°C LADDER 16-Pin 2506 Concave SMD T/R


Electro Sonic:
Res Array 165 Ohm/140 Ohm 1% ±200ppm/°C LADDER 16-Pin 2506 Concave SMD T/R


CAT16-LV4F12LF中文资料参数规格
技术参数

额定电压DC 5.00 V

容差 ±1 %

额定功率 62.5 mW

针脚数 16

电阻 165 Ω

阻值偏差 ±1 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 5 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 SMD

外形尺寸

长度 6.4 mm

宽度 1.6 mm

高度 0.6 mm

封装 SMD

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

数据手册

CAT16-LV4F12LF引脚图与封装图

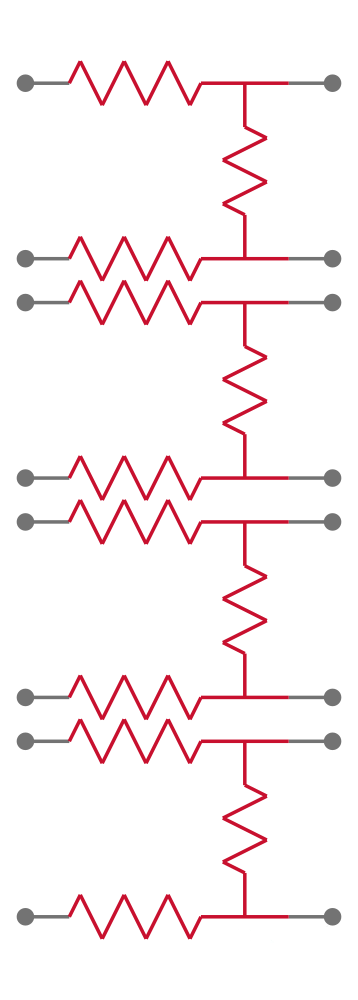

CAT16-LV4F12LF引脚图
CAT16-LV4F12LF封装图

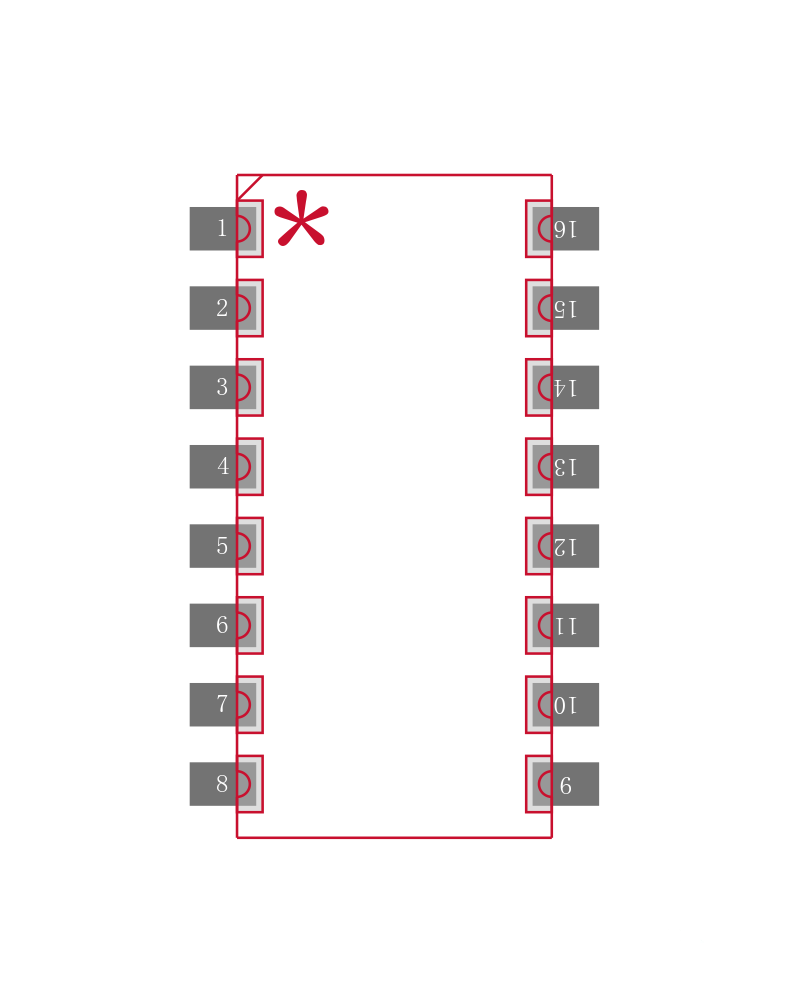

CAT16-LV4F12LF封装焊盘图
在线购买CAT16-LV4F12LF
型号: CAT16-LV4F12LF
制造商: Bourns J.W. Miller 伯恩斯
描述:BOURNS  CAT16-LV4F12LF.  电阻阵列, 4X, 165Ω 1% SMD
