CLP-117-02-L-D

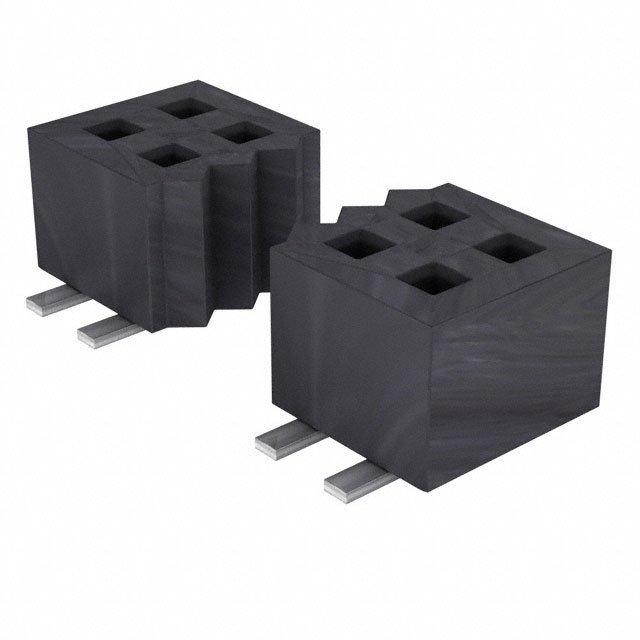

CLP-117-02-L-D图片1
CLP-117-02-L-D图片2
CLP-117-02-L-D图片3
CLP-117-02-L-D图片4
CLP-117-02-L-D图片5
CLP-117-02-L-D图片6
CLP-117-02-L-D概述

SAMTEC  CLP-117-02-L-D  板至板连接, CLP系列, 34 触点, 插座, 1.27 mm, 表面安装 , 2 排

34 位置 插座 0.050"(1.27mm) 表面贴装型 镀金


欧时:
.050" Socket 34 P 2 Row L Au


得捷:
CONN RCPT 34POS 0.05 GOLD SMD


e络盟:
板至板连接, CLP系列, 34 触点, 插座, 1.27 mm, 表面安装 , 2 排


艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip CLP-117-02-L-D header connector from Samtec. This SKT connector&s;s 34 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a maximum voltage rating of 340 VDC|240VAC. It has a straight body orientation. This is a 2-row connector. It has a socket type gender. This device has a maximum current rating of 3.3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. This product is 22.02 mm long, 2.29 mm tall and 4.32 mm deep. It uses the solder termination method. CLP-117-02-L-D is housed in black liquid crystal polymer.


安富利:
Conn Socket Strip SKT 34 POS 1.27mm Solder ST SMD Tube


Newark:
# SAMTEC  CLP-117-02-L-D  Board-To-Board Connector, 1.27 mm, 34 Contacts, Receptacle, CLP Series, Surface Mount, 2 Rows


CLP-117-02-L-D中文资料参数规格
技术参数

触点数 34

极性 Female

触点电镀 Gold

排数 2

针脚数 34

拔插次数 100

额定电流Max 3.4A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Surface Mount

引脚间距 1.27 mm

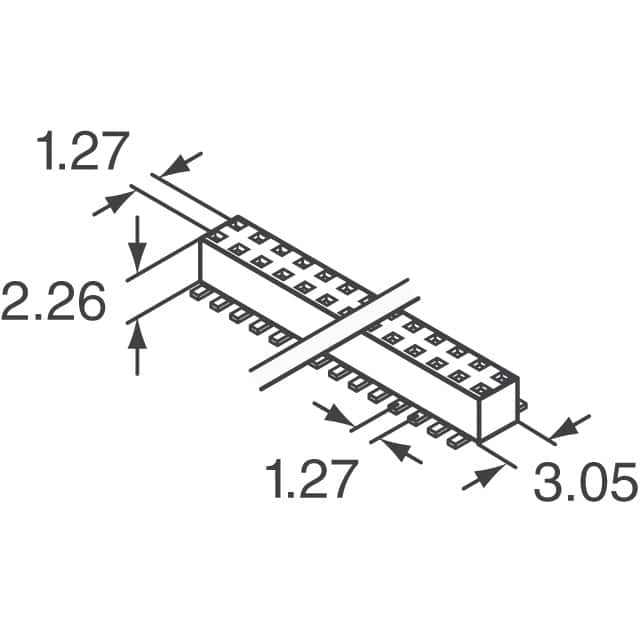

外形尺寸

长度 22.0 mm

宽度 3.05 mm

高度 2.29 mm

引脚间距 1.27 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Tube

制造应用 Industrial, -, 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

CLP-117-02-L-D引脚图与封装图

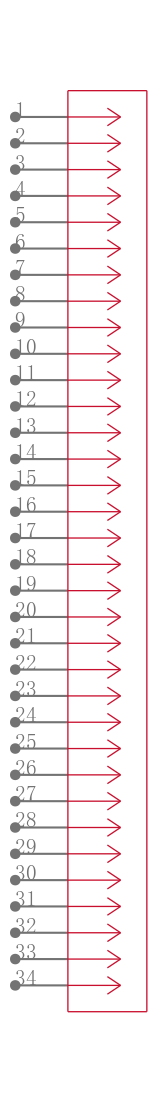

CLP-117-02-L-D引脚图

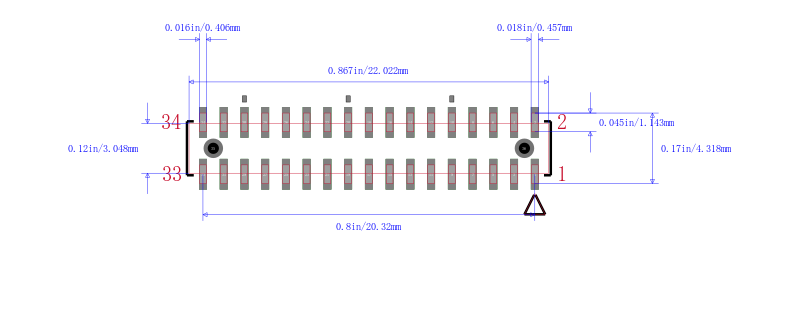

CLP-117-02-L-D封装图

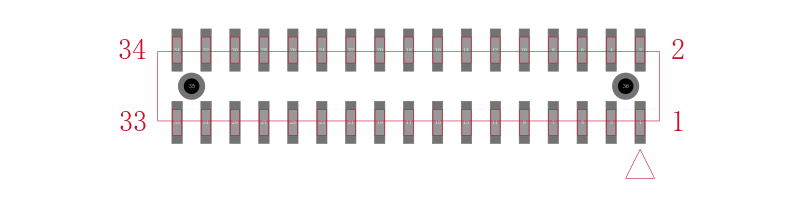

CLP-117-02-L-D封装焊盘图
