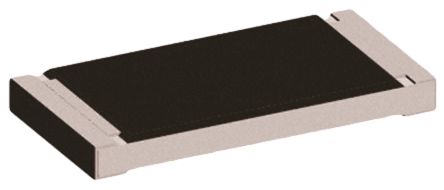

VISHAY CRCW120622R0JNEAIF 片式电阻器, 表面贴装, 厚膜, AEC-Q200 CRCW系列, 22 ohm, 200 V, 1206 [3216公制], 250 mW, ± 5%
The Vishay D/CRCW-IF e3 series Lead Pb-free thick film, rectangular, pulse proof chip resistors. The D/CRCW-IF e3 series resistors have Pure tin plating which provides compatibility with lead Pb-free and lead containing soldering processes.
- .
- High pulse performance
- .
- Metal glaze on high quality ceramic
- .
- Protective overglaze
- .
- Excellent stability ΔR/R
- .
- Lead Pb-free solder contacts on Ni barrier layer
容差 ±5 %
额定功率 250 mW
电阻 22 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/K
包装方式 Cut Tape CT
制造应用 电源管理, Portable Devices, Consumer Electronics, Automotive, 工业, 便携式器材, 车用, 消费电子产品, Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CRCW120622R0JNEAIF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
ERJ8GEYJ220V 松下 | 类似代替 | CRCW120622R0JNEAIF和ERJ8GEYJ220V的区别 |
RK73B2BTTD220J Speer | 类似代替 | CRCW120622R0JNEAIF和RK73B2BTTD220J的区别 |
