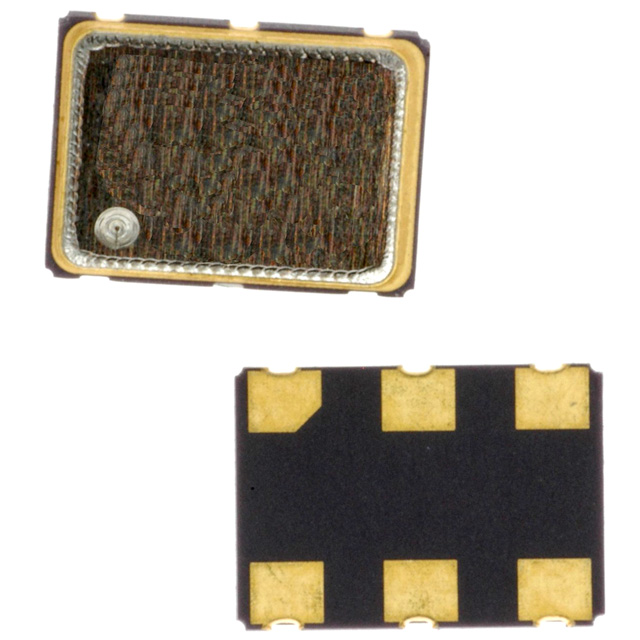

CCLD-033-50-100.000

100MHz ±50ppm 3.3V 6Pin

Designed to meet todays requirements for 3.3 volt LVDS applications. The CCLD-033 uses a high-Q fundamental crystal providing very low jitter and phase noise.

.

*Specifications:**

* Frequency Range: 77.760-161.000 MHz

* Temperature Range: 0°C to 70°C

* Supply Voltage: 3.3 V ±0.3 V

* Supply Current: 35 mA Typ., 47 mA Max.

* Phase Jitter: <1 pSec RMS Max.

* Package: 5 × 7 mm SMD **Output:**

* LVDS Logic

得捷:
XTAL OSC XO 100.0000MHZ LVDS SMD

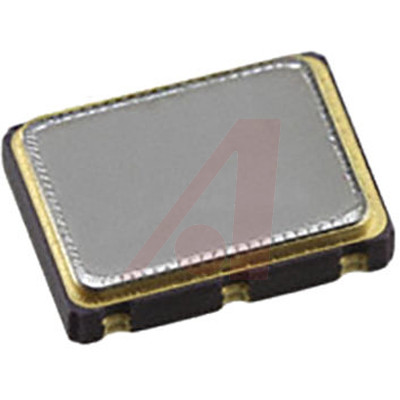

Allied Electronics:
Clock Oscillator, LVDS; 3.3V; 100.00 MHz; +/-50ppm; 5x7mm SMD
