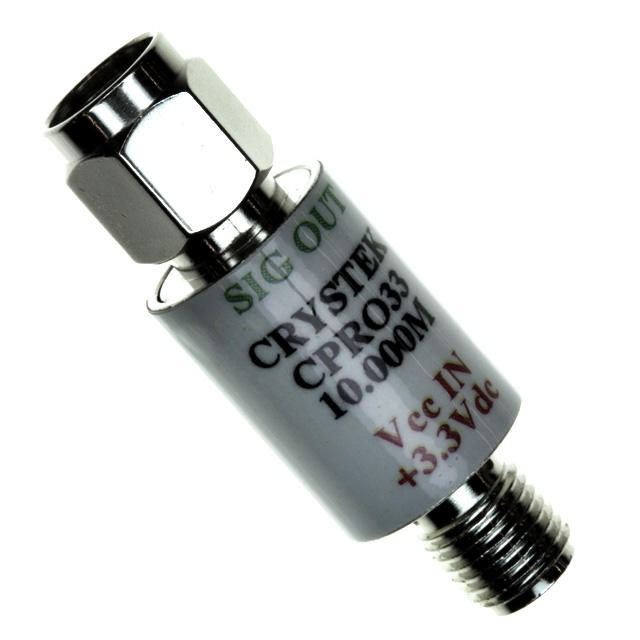

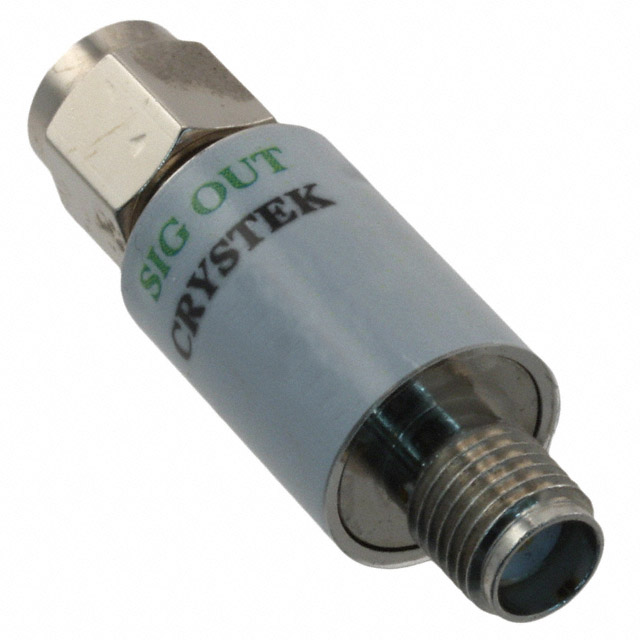

Oscillator, Pocket Reference; Type, HCMOS; 3.3V; 10MHz; +/-25ppm; SMA M/F
Crystek"s new PRO Series, Pocket Reference Oscillator is an industry first! A complete HCMOS crystal clock oscillator has been integrated in a rugged SMA housing. Simply connect +3.3 VDC to the female side and it will output a clean Low Jitter signal from the male SMA side. In effect, each PRO is a fixed frequency portable crystal generator. Frequency stability is ±25 ppm over 0°C to +70°C. Available off the shelf in many standard frequencies. Prefect for lab use.
**Features:**
* Low Insertion Loss
* Flat Frequency Response
* Excellent Return Loss Throught 3 GHz
**Applications:**
* DC Blocking
* Broadband Coupling
* Test and Measurement
**Maximum Ratings:**
* 16 Working VDC Max.
* Operating Temp.: –55°C to +90°C
* Storage Temp.: –55°C to +125°C
**Specifications:**
* HCMOS Output
* 3.3 V Supply Voltage
* 15 pF Typical Load
