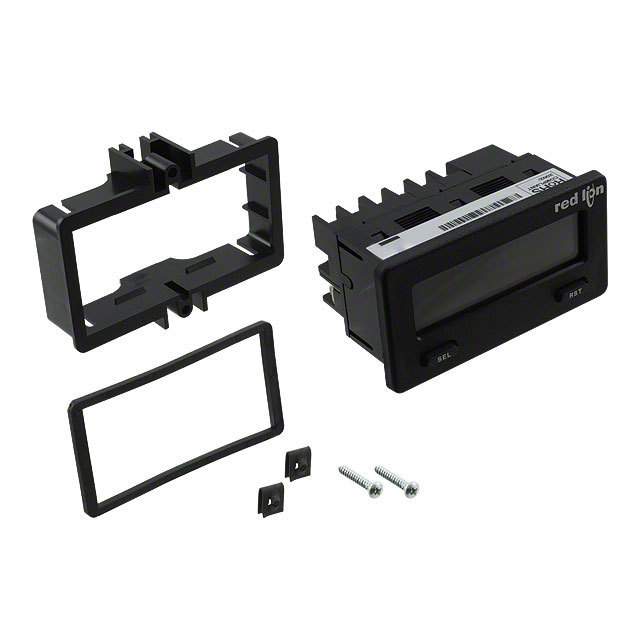

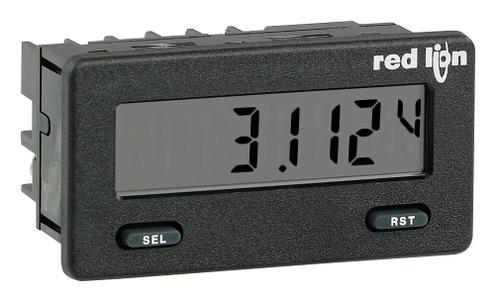

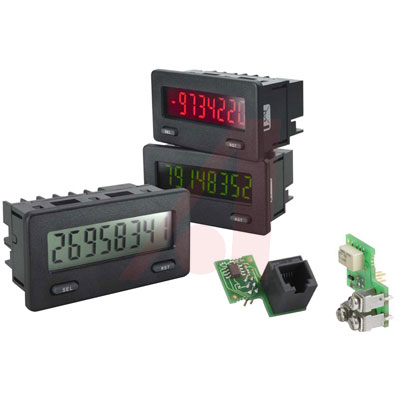

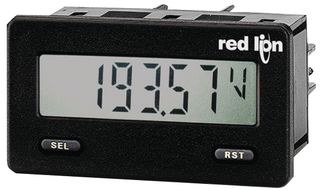

CUB5 - LCD, 5-digit, 200 V, 12 mm character height**Accessories:** Small and compact display Free scaling Relay output module Transistor output module RS stock no.: 653-7738 RS485 serial interface RS stock no.: 656-5698 RS232 serial interface RS stock no.: 656-5682 DC voltage input range: | 200 mV, 2 V, 20 V, 200 V ---|--- Display capacity: | 5-digit LCD, 12 mm high, can be switched between standard or red/green with backlight Power supply: | 9 → 28 Vdc Electrical connection: | Screw terminals Mounting: | Front panel mounting with mounting frames Housing material: | Plastic Protection rating: | IP65 Dimensions W x H x D: | 75 x 39 x 44 mm Weight: | approx. 100 g Ambient temperature: | -35 °C → +75 °C ### 认可CE### LCD 5.5 至 19mm 数字高度全都具有 0 至 +50°C 的工作温度范围，指定的除外。
电压（电压表） LCD - 黑色字符 显示 面板安装
得捷:
VOLTMETER 0-200VDC LCD PANEL MT
欧时:
Voltage display LCD
Allied Electronics:
Digital Panel Voltmeter DC, LCD display5-Digits +/-0.1 %, 68 x 33 mm
Newark:

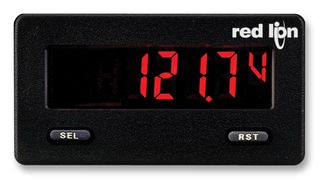

# RED LION CUB5VR00 Panel Meter, Red/Green, 5 Digits, DC Voltage, 0mV to 200mV / 0V to 2V / 0V to 20V / 0V to 200V
