CUB7CVG0

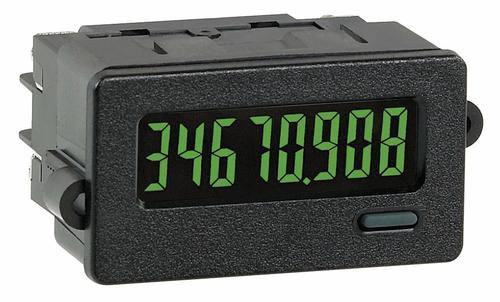

Counter, Miniature Electric, CUB Series, 8 Digits, Green Display, 50V to 250V

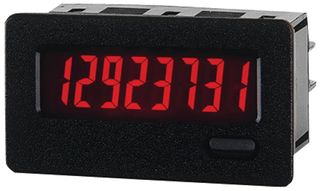

The CUB7 series is an 8-digit lithium battery powered miniature counter or timer with large 0.35" 8.9 mm high digits. It has an LCD read-out available in Positive Imagine Reflective, Negative Image Transmissive with yellow/green or red backlighting. The backlight versions require an external 6-26 VDC power supply. The CUB7 series is housed in a lightweight, high impact plastic case with a clear viewing window. The sealed front panel with silicon rubber keypad meets NEMA 4X/IP65 specification for wash-down and/or dusty environments, when properly installed with supplied panel gasket and mounting clip.

Both counter and timer CUB7 models are available with a low voltage input 28 VDC max or an isolated high voltage input 50-250 VDC/VAC. The low voltage input has DIP switch selections for SINKING or SOURCING along with a HIGH/LOW FREQUENCY selection low frequency for contact inputs. Both units have front panel keypads that can be used to reset the display. The keypad can be enabled/disabled via a single DIP switch. The standard unit uses 22 gauge wires for external connections, an optional plug-in terminal block is available.

**Feaures:**

* Internal Lithium Battery for up to 7 Years Operation

* Count Speeds up to 10 kHz

* 9 Programmable Time Ranges

* Contact, Logic, Open Collector or High Voltage Inputs

* Standard Wire Connections or Optional Plug-In Terminal

* NEMA 4X/IP65 Sealed Front Bezel
