Summation counter 6-digit LCD 50 Hz5kHz High-speed counting input: 5kHz, 4 - 28V, bipolar input, low-speed: pulses via potential-free contact or open collector Lithium-Batterie, CUB4L000, Red Lion

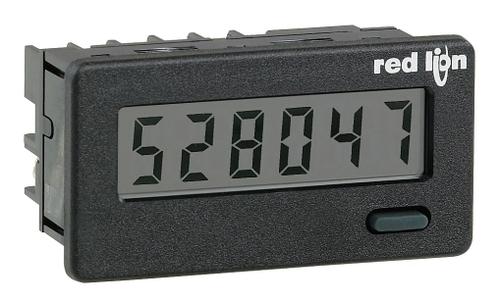

The CUB4 is a miniature electronic 6-digit counter. The CUB4L offers large 0.48" high digits. The LCD is available in Positive Image Reflective, or Negative Image-Transmissive with red backlighting. The backlight versions require power from an external 9 to 28 VDC supply. The optional power supply with MLPS is designed to be attached directly to the rear of a CUB4L and is powered from an 115/230 V source. The CUB4L has a lightweight, high impact plastic case with a clear viewing window. The sealed front panel with the silicone rubber reset button meets NEMA 4X/IP 65 specifications for wash-down and dusty environments.
**Features:**
* 39 mm × 75 mm
* 6 Digit, 0.48" 12.2 mm LCD CUB4L
* 3 V Lithium Battery 9-28 VDC Required for Backlit Models

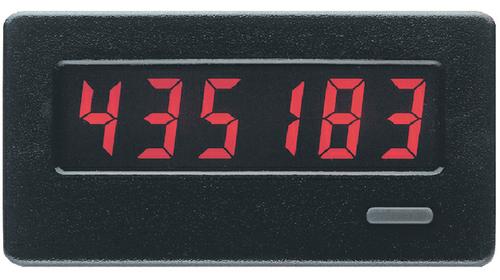

* Reflective or Red LED Backlighting
* Front Panel or Remote Reset
* Count Speeds Up to 5 kHz
* Count Input Voltage Up to +28 VDC
* NEMA 4X/IP65
**Specifications:**
* Display: 6-Digit LCD 0.48" High Digits
* Power: 3 Volts Lithium Battery
* Backlight Power: 9 to 28 VDC @ 35 mA Typical, 50 mA Max.; Use the MLPS or Class 2 Power Supply
* Inputs All: Vih High = +4 V Min. 28 Volts Max.; Vil Low = 0.5 V Max.
* High Speed Input: 5 kHz from Switch Contact or Open Collector Transistor with 50% Duty Cycle
* Low Speed Input: 50 Hz from Switch Contact or Open Collector Transistor with a 50% Duty Cycle
* Operating Temperature: 0 to +60°C
* Panel Cutout: 2.68" × 1.30"
