CRCW12062M32FKEA

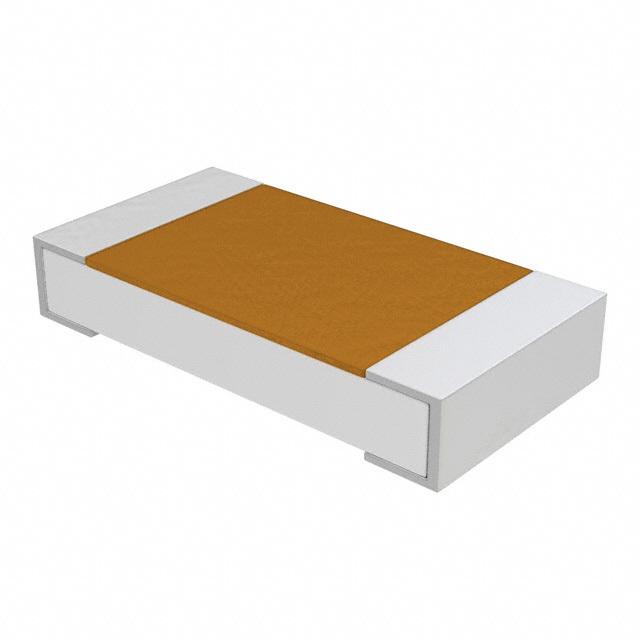

VISHAY CRCW12062M32FKEA SMD Chip Resistor, Thick Film, 2.32Mohm, 200V, 1206 [3216 Metric], 0.25W1/4W, ± 1%, CRCW Series

The Vishay D/CRCW e3 series are standard thick film chip resistors. The resistance range includes E96 and E24 decade values from 1ohm to 10Mohm. CRCW e3 series resistors have a pure tin solder contacts on the Ni barrier layer that provides compatibility with reflow soldering process.

.

Automotive grade AEC-Q200 qualified

.

EIA 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512 standard case sizes available

.

Stability ΔR/R = 1% for 1000h at 70°C

.

Metal glaze on high quality ceramic

.

Zero ohm jumper are available for all sizes

.

2mm pitch packaging option for 0603 size

.

Available in ±1% and ±5% tolerance

.

±100ppm/K and ±200ppm/K TCR values available

.

Operating temperature range -55°C to +155°C

.

Maximum power rating is 1W
