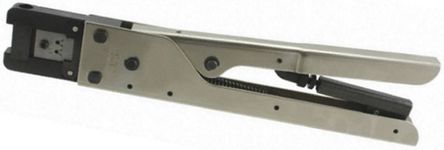

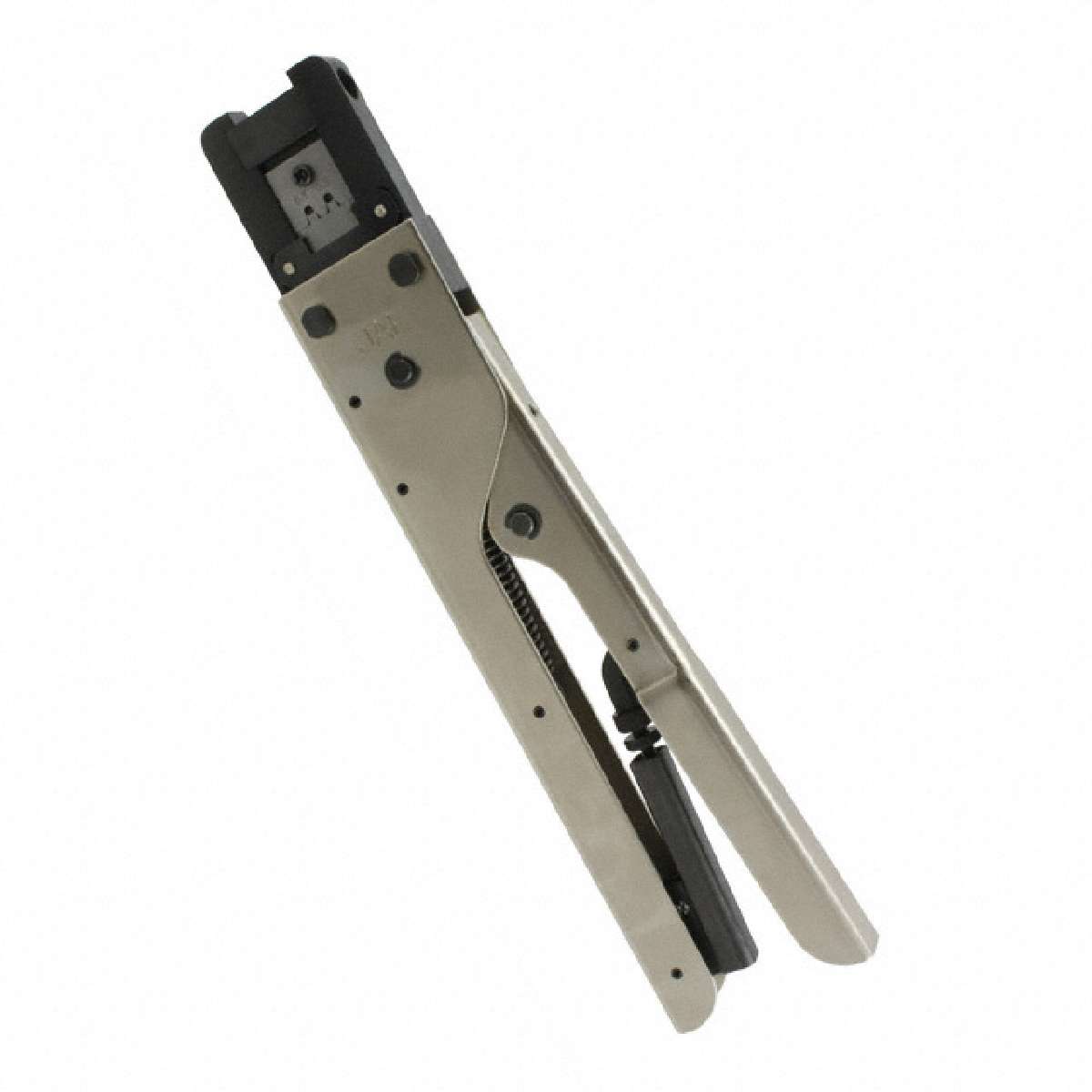

CRIMP TOOL 20-22AWG MX44
JAE has developed the MX44 Series compact waterproof connector for automotive applications.
It has been made more compact by adopting a structure that closely presses the rubber seals to mating surfaces. Due to the vibration absorption function of the rubber the connector has an improved vibration resistance. Moreover, each contacts is individually waterproof, making the connector suitable for use in harsh environments such as engine areas.
Features
• 3.5 mm side pitch, 1row, compact waterproof board to wire connector
• Connector size reduced by waterproof structure with tight sealing rubber in the mating area.
• Vibration resistance improved by rubber absorbing unsteadiness of connector and contact.
• Adopts single contact waterproof structure which makes each contact separately waterproof.
• Socket contact is a box type which is strong against external force, and contact area adopts a proven double spring which is resistant to twisting.
• Contacts set in position by inserting retainer from wire side.
Retainer protects connector lock portion.
