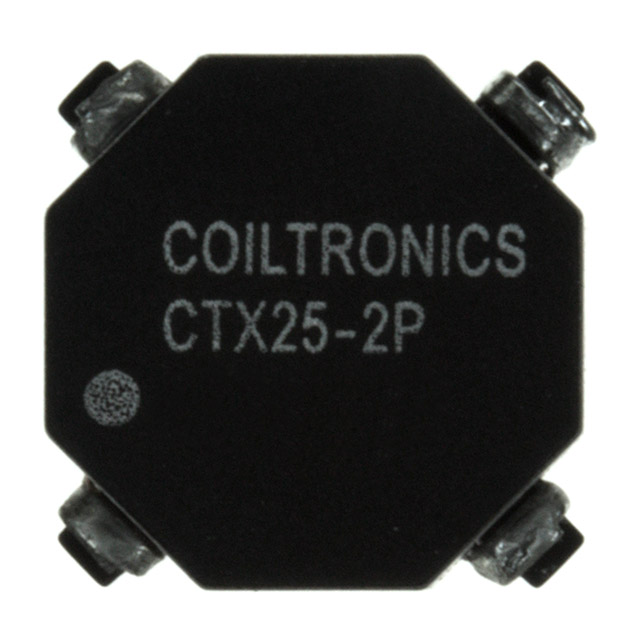

Inductor Power Wirewound 24.79uH/99.14uH 20% 100kHz Powdered Iron 1.4A/0.7A 109mOhm/436mOhm DCR T/R
* Surface Mount Magnetics That Can Be Used as Single or Coupled Inductors or 1:1 Transformers That Provide Isolation Between Two Windings
* OCTA-PACs Are Designed Around High Frequency, Low Loss Material
* ECONO-PACs Are a Lower Cost Version of OCTA-PACs Offering High Saturation Flux Density
* OCTA-PAC PLUSs Offer Higher Current Ratings and Higher Saturation Flux Densities Than OCTA-PAC and ECONO-PAC
* Secure 4-Terminal Mounting
* Inductor More Versatile Inductance Combination By Series or Parallel Connections
额定电流 1.4 A
容差 ±20 %
电感 24.79 μH
屏蔽 No
电阻DC） 0.109 Ω
安装方式 Surface Mount
引脚数 4
封装 0.450" L x 0.450" W x 0.235" H 11.43mm x 11.43mm x 5.97mm
长度 11.43 mm
宽度 11.43 mm
高度 5.97 mm
封装 0.450" L x 0.450" W x 0.235" H 11.43mm x 11.43mm x 5.97mm
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CTX25-2P-R Cooper Bussmann 库柏 | 当前型号 | 当前型号 |
CTX25-2-R 库柏 | 类似代替 | CTX25-2P-R和CTX25-2-R的区别 |
CTX25-2P Coiltronics/Cooper Bussmann | 功能相似 | CTX25-2P-R和CTX25-2P的区别 |
