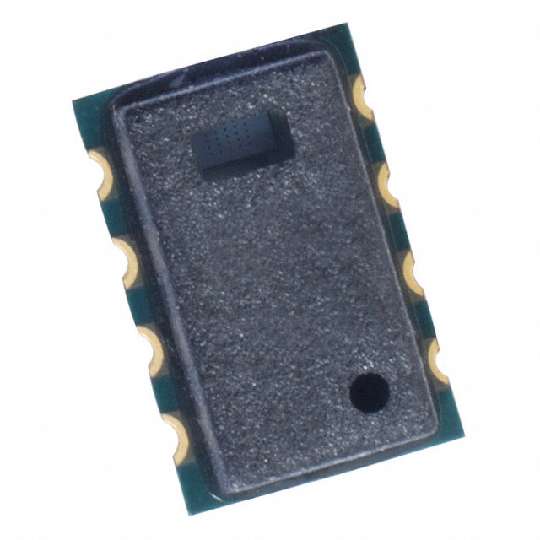

AMPHENOL ADVANCED SENSORS CC2A25 湿度传感器, 2 %, 5 V, 0% 至 100% 相对湿度, LCC, 8 引脚, 7 s
The is a fully calibrated Humidity and Temperature Sensor with EEPROM integrated into one embedded system. Individually calibrated and tested, ChipCap 2 is simple and ready to use without further calibration or temperature compensation. ChipCap 2 provides linear output signals in various interfaces to customer requirements, I²C interface, PDM convertible to analogue signal, alarm function for preset control at min/max humidity.
- .
- Analogue output with alarm function
- .
- Low current consumption
- .
- Fully temperature compensated
电源电压DC 5.00 V
工作电压 2.7V ~ 5.5V
供电电流 750 μA
针脚数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 2 %
电源电压 5 V
电源电压Max 5.5 VDC
电源电压Min 2.7 VDC
安装方式 Surface Mount
引脚数 8
封装 SMD-8
长度 6 mm
高度 1.9 mm
封装 SMD-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 医用, 车用, 传感与仪器, Automation & Process Control, Sensing & Instrumentation, Medical, HVAC, Automotive, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
