CYD18S72V18-167BGC

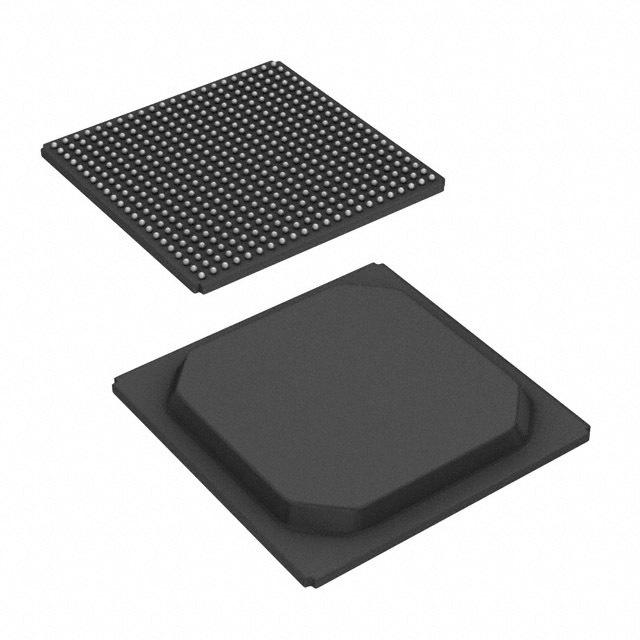

CYD18S72V18-167BGC图片1

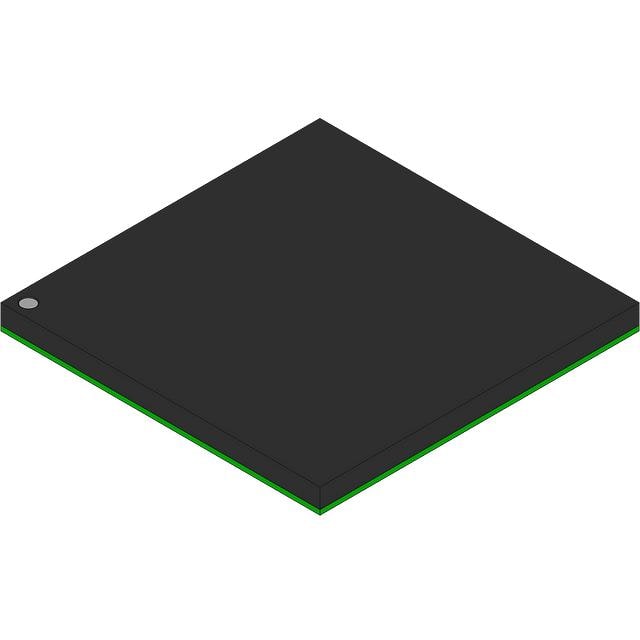

CYD18S72V18-167BGC图片2

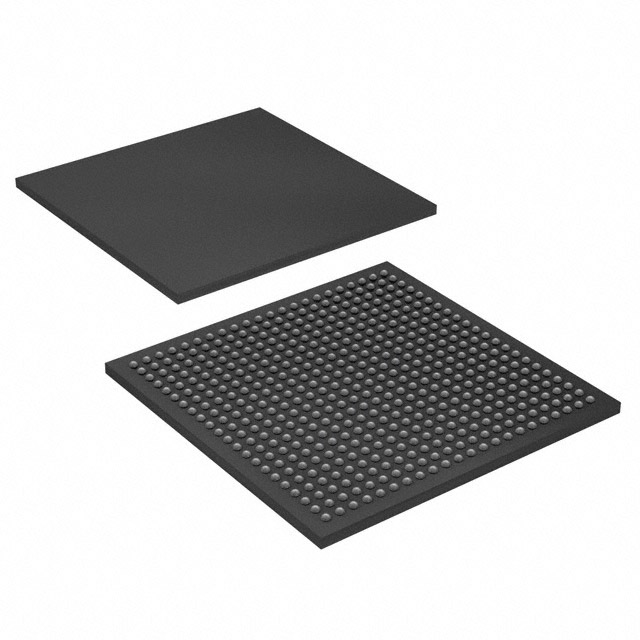

CYD18S72V18-167BGC图片3
CYD18S72V18-167BGC图片4
CYD18S72V18-167BGC概述

FullFlex SDR同步双端口SRAM商用和工业温度 FullFlex Synchronous SDR Dual Port SRAM Commercial and Industrial temperature

SRAM - Dual Port, Synchronous Memory IC 18Mb 256K x 72 Parallel 167MHz 4ns 484-FBGA 23x23


立创商城:
CYD18S72V18-167BGC


艾睿:
SRAM Chip Sync Dual 1.8V 18M-Bit 256K x 72-Bit 11ns/6ns 484-Pin BGA Tray


Chip1Stop:
SRAM Chip Sync Dual 1.8V 18M-bit 256K x 72-bit 11ns/6ns 484-Pin BGA Tray


罗切斯特:
SRAM Chip Sync Dual 1.8V 18M-bit 256K x 72-bit 11ns/6ns 484-Pin BGA Tray


CYD18S72V18-167BGC中文资料参数规格
技术参数

存取时间 11 ns, 6 ns

工作温度Max 70 ℃

工作温度Min 0 ℃

电源电压 1.8 V

电源电压Max 1.9 V

电源电压Min 1.7 V

封装参数

安装方式 Surface Mount

引脚数 484

封装 BGA-484

外形尺寸

高度 1.53 mm

封装 BGA-484

物理参数

工作温度 0℃ ~ 70℃ TA

其他

产品生命周期 Unknown

包装方式 Tray

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买CYD18S72V18-167BGC
型号: CYD18S72V18-167BGC
描述:FullFlex SDR同步双端口SRAM商用和工业温度 FullFlex Synchronous SDR Dual Port SRAM Commercial and Industrial temperature
