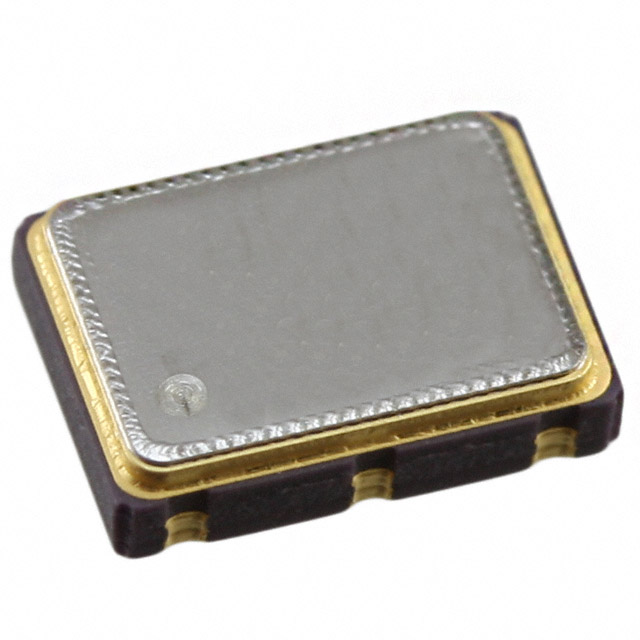

CCPD-033X-50-155.520

Clock Oscillator, Lvpecl; 3.3V; 155.52MHz; +/-50ppm; -40 To 85Deg c; 5x7mm SMD

Designed to meet today"s requirements for 3.3 volt Complementary LVPECL applications. The CCPD-033/034 uses a high-Q crystal providing very low jitter and phase noise for demanding applications.

**Specifications:**

* Frequency Range: 77.760-330 MHz

* Temperature Range: 0°C to +70°C

* Supply Voltage: 3.3 V ±0.3 V

* Supply Current: 55 mA Typ., 88 mA Max.

* Phase Noise: –140 dBc/Hz Typ.

* Phase Jitter: <1 ps RMS Max.

* Package: 5 × 7 mm SMD

**Output:**

* Differential LVPECL
