C091 31D007 102 4

INDUSTRIAL@AMPHENOL  C091 31D007 102 4  圆形连接器, C091D系列, 插头, 7 触点, 母, 焊接, 电缆安装

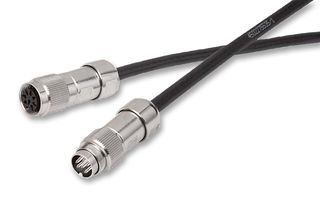

The is a 7-pole male Cable Connector with silver-plated contacts. It has nickel-plated zinc die-cast body, thermoplastic dielectric and a chloroprene sealing.

.

Screw locking according to IEC 61076-2-106

.

Metal locking ring

.

Internal strain relief

.

Reduced assembling time

.

Easy and reliable assembly

.

Outer cable diameter up to 10.5mm

.

360° Shielding resistance 30dB

.

100V Rated voltage

.

1500V Rated impulse withstand voltage

.

IP68 Protection in mated condition
